Pipeline induction heating furnace

Pipeline induction heating furnace


Application: Hardening , Quenching & Tempering

Material Heated:45#,40Cr,42CrMo,65Mn

Bar Diameter Allow: Φ20-110mm

Pipe Diameter Allow: Φ60-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

pipeline induction heating equipment

Forever purpose is to provide pipeline induction heating furnace and material solutions that protect pipelines from corrosion, heat loss, and mechanical damage at the field joint while providing contractors with fast, clean, efficient, commercially attractive subcontract services.

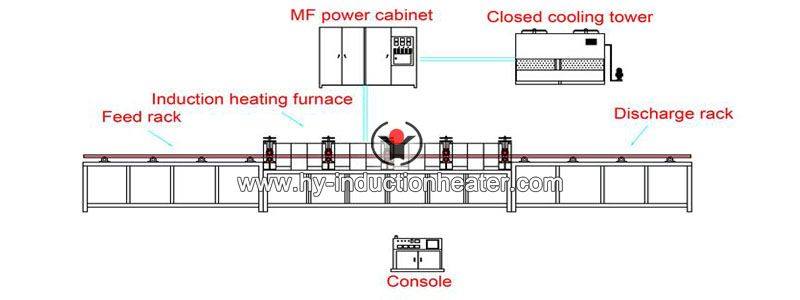

bar heating for rolling

Application for pipeline induction heating furnace

● Pre-weld heat treatment
● Post-weld heat treatment
● Pre-heating before coating
● Tube bending
● Shrink fitting and removal
● Removal of paint and coatings
● Curing of coatings
● Pre-heating prior to cladding
● Pre- and postheating of swaged ends
● Pre-weld heating for subsea hot tapping

Advantages for pipeline induction heating furnace

● Energy saving, Environmental protection, Low pollution level
● Easy operation, can be equipment with PLC controller
● Miniature and light weight, Economic Space Occupation, Easy installation
● Enhanced monitoring and diagnostics system, guarantee the machine of high stability, reliability and security.
● Strict Supplier Management System and ISO9001-2008 Quality Management System guarantee high quality of each equipment.
● Customized services, producing pipeline induction heating equipment according to customer’s requirement.


    Pipe diameter Automatic control Power design
    Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

    As our induction heater is all customized, the above parameters are only for your reference.


    Overseas manager: Tom Wang

    Phone: 0086-13303078975(whatsapp, wechat,line)

    Specialist of induction heating equipment and system in China; Glad to be your business partner in induction heating field.
