pipeline induction heating equipment

pipeline induction heating equipment


Application: Hardening & Quenching

Material Heated:45#,40Cr,42CrMo,65Mn

Bar Diameter Allow: Φ20-110mm

Pipe Diameter Allow: Φ60-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name: pipeline induction heating equipment

Typical Application:

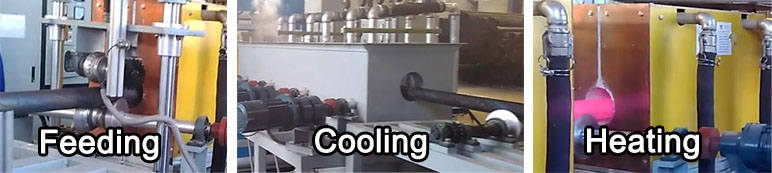

Pipe quenching machine  is used to increase hardness and mechanical strength of steel pipe in a specific area. Steel material will be heated to a temperature slightly higher than the upper critical (between 850-900ºC) and then cooled very quickly in a quenching medium such as oil, air, water etc.

pipe quenching machine

Features for pipe quenching machine

● Automatic loading, unloading and transport systems

● Heating, quenching and tempering parameters control and monitoring

● Uniform quenching, no deformation

● Easy operation & maintenance

● Reliable performance

Applications for pipe quenching machine

  • Sucker rod horizontal induction quenching machine  see video
  • Drill pipe,drill rod induction quenching  see video
  • Long bar induction quenching  see video
  • Long shaft  induction quenching
  • Slab induction quenching  see video
  • Anchor bolt induction quenching  see video


    Pipe diameter Automatic control Power design
    Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

    750质量英文版 001_副本


    As our induction heater is all customized, the above parameters are only for your reference.
