Steel bar induction hardening machine

Features:

Application: Hardening & Quenching

Material Heated:45#、40Cr、42CrMo、65Mn

Diameter Allow: Φ60-300mm

Length Allow:Not limited

Inquiry Email Skype

Product Detail

Application Video

Product Tags

Product Name: bar induction hardening machine

Typical Application:

With energy saving power supply and reliable control system, Forever high quality bar hardening machine is used for round bars hardening, surface hardening, through hardening.

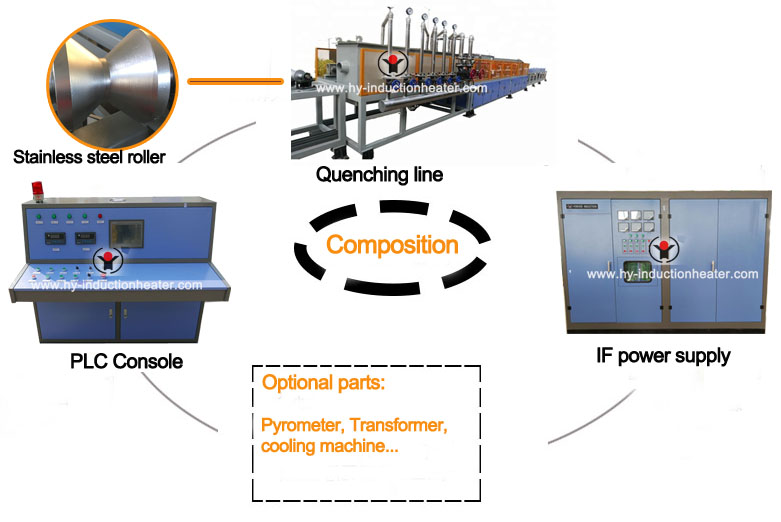

Full automatic bar hardening machine with PLC feeder and cooling device for hardening rods, bars and plate etc.

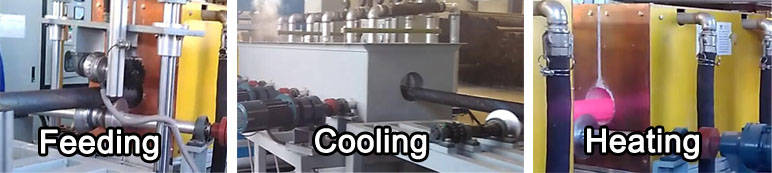

induction heating bar for hardening

Induction hardening is a form of heat treatment in which a metal part is heated by induction heating and then quenched. The quenched metal undergoes a martensitic transformation, increasing the hardness and brittleness of the part. Induction hardening is used to selectively harden areas of a part or assembly without affecting the properties of the part as a whole.

Types for bar hardening

Case hardening
Surface hardening
Through hardening

Applications for bar hardening machine

Sucker rod horizontal induction hardening machine see video
Drill pipe,drill rod induction hardening see video
Long bar induction hardening see video
Long shaft induction hardening
Slab induction hardening see video
Anchor bolt induction hardening see video

cases

Diameter	Automatic Control	Power Design
Ø18-Ø28 mm(Steel bar)	PLC Control	IGBT200KW Quenching
Ø30-Ø70mm(Steel bar)	PLC Control	KGPS350KW Quenching
Ø80-Ø110(Steel bar)	PLC Control	KGPS450KW Quenching
Ø16-Ø32 mm(Sucker rod)	PLC Control	IGBT200KW Quenching

Shaft diameter	Shaft length	Heating Temp.	Quenching depth	Production capacity
Ø16	4m	900℃	1.1～2.3mm	120 PCS/H
Ø25	4m	900℃	1.1～2.3mm	60 PCS/H
