Induction bar heater for forging
Features:
Application: Forging & Rolling
Material: Carbon steel, Brass,Iron,Alloy steel,Stainless steel,Aluminum
Application: Bar,flat plate,bar end heating, flat bar end, pipe ends,etc.
Diameter Allow: Φ20-150mm
Length Allow:Not limited
Product Detail
Application Video
Product Tags

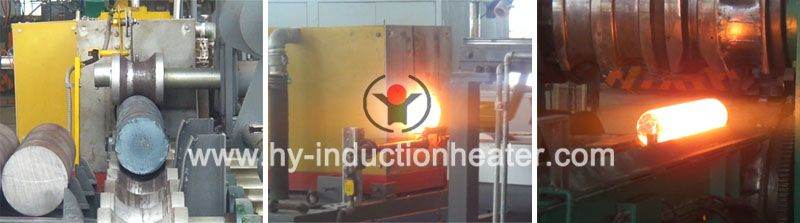

Product Name: Induction heating bar furnace
Typical Application:
Specializes in Induction heating bar furnace manufacturing and marketing for more than 1 decade, , Forever Induction heating bar furnace is used for steel bar,copper bar, brass bar, aluminum bar heating with energy saving power supply & self-developed control system.
Induction heating is efficient, easily controlled, uses no energy when not heating, and puts the heat where you want it, when you want it. No idle time, no massive refractories to heat, and close coupling enables you to use energy in the best possible way.
Features
● Efficient and quick heating
● Accurate, repeatable heating
● Safe heating as there is no flame
● Equipped with infrared pyrometer and automatic feeder
● New type power supply, saving power
NEW TYPE POWER SUPPLY
● Power saving 10% -15%:No harmonics, high power factor, load output voltage is high, the load coil current is low,small power consumption.
● Using special transformer for electric furnace.
● 100% successful starting.Reliable frequent starting is available.
● The furnace has high reliability: This product uses the latest DSP control technology, with reasonable structure, easy commissioning & reliable performance, which has automatic protection functions including water temperature, water pressure, phase shortage, over-current, under-voltage to ensure The product is running in stable and reliable condition.
● Adopt famous brand components which reduce fault rate and make sure the equipment can run reliably, thereby reducing the shutdown probability caused by failure.
● Advanced technology & Easy maintenance: Having simple structure,perfect protection for control circuit & the most advanced touch screen control, our power supply can show complete failure and find the error.It adopts DSP control technology, which has a high processing speed, which ensures the efficient and orderly operation of the device functions. real-time computing function and real-time simulation and simulation capability.
More adaptable for load: New type IF induction power supply has self-adaptive function with angle adjustment. No need to adjust power supply while replacing inductor, and the equipment can automatically run in the best condition.
Successful cases
| Bar Diameter | Bar Length | Heating Temp. | Production capacity |
| Φ36-45mm | 1500mm | 1125°C ± 25 | 3T/H |
| Ø60mm | 6000mm | 1200℃ | 4.4T/H |
| Ø70mm | 6000mm | 1200℃ | 5.3T/H |
| Ø80mm | 6000mm | 1200℃ | 6T/H |
| Diameter | Automatic Control | Power Design |
| Ø18-Ø28 mm(Steel bar) | PLC Control | IGBT200KW Quenching |
| Ø30-Ø70mm(Steel bar) | PLC Control | KGPS350KW Quenching |
| Ø80-Ø110(Steel bar) | PLC Control | KGPS450KW Quenching |
| Ø16-Ø32 mm(Sucker rod) | PLC Control | IGBT200KW Quenching |
As Forever induction heating equipment is customized, the above parameters are only for our reference.
Welcome to contact us at sales@foreverfurnace.com for customized detailed price & solution.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
