Copper bar heating furnace
Features:
| Application | Copper bar heating, hardening, tempering, annealing |
| Power | 100 KW-10000 KW |
| Non standard |
Professional Customization |
Product Detail
Application Video
Product Tags
Product Name: Copper bar heating furnace
Application:Used for heating before brass bar extrusion
Technical requirement
● Brass bar diameter : 200mm
● Brass bar length: 700mm
● Heating temperature: 850℃
● Production capacity: 5-6 t/h
●Temperature control: Closed-loop temperature control system, which can adjust the heating temperature automatically.

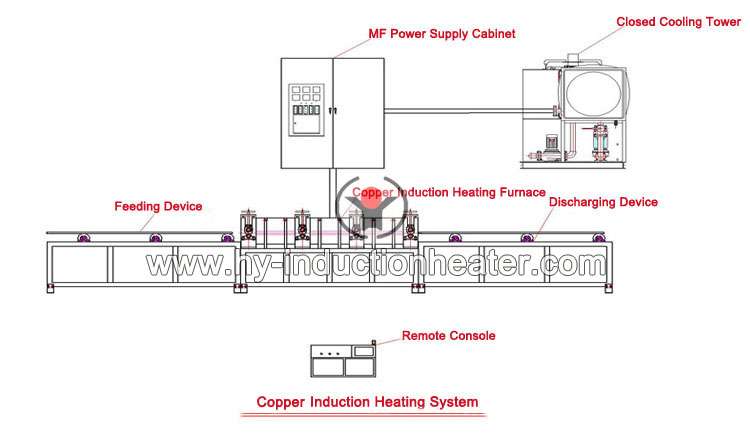

Main configuration for copper bar heating furnace
|
ITEM |
MACHINE NAME |
SPECIFICATION |
QUANTITY |
|
1 |
Bar storage platform |
|
1 Set |
|
2 |
Bar conveying roller device |
Frequency control |
1 Set |
|
3 |
IF power supply |
1800KW/500HZ |
1 Set |
|
4 |
Induction heater |
GTRø200*L |
1 Set |
|
5 |
Steel sheel capacitor cabinet |
|
1 Set |
|
6 |
Pinch roller device |
Double pinch roller for feeding |
1 Set |
|
Single pinch roller for discharging |
1 Set |
||
|
V type roller table between inductor |
1 Set |
||
|
7 |
Infrared thermometer |
Including display meter |
1 Set |
|
8 |
Remote console |
Siemens PLC and temperature control system |
1 Set |
|
9 |
Enclosed cooling machine |
|
1 Set |
|
10 |
Product manual |
|
|
Features of top quality copper bar heating furnace
● Heating fast: the fastest heating speed is less than 10 seconds; the speed can be adjusted.
● Copper bar heating furnace has manual and automatic heating functions;
● 100% success starting and quick start and stop,no need preheating.
● Copper bar heating furnace can satisfy round bar diathermy requirements or partial heating requirements.
● The copper induction heating system has protection and alarm indication for over voltage, over current, phase, temperature, pressure
● The operator can adjust the power to shorten or lengthen the heating time;
Service commitment for copper bar heating furnace
● Pre sales service: professional consultation, reasonable suggestion, scientific plan;
● Sales in service: delivery service, installation guide, free training;
● After sales service: professional maintenance, customer files, quality tracking;
● Service purpose: free samples, free installation and debugging, regular visits, quality tracking, one year warranty, life-long maintenance
More details or videos about induction heat treating equipment, please send us email.
