Piston rod hardening and tempering manufacturers

Piston rod hardening and tempering manufacturers


Material    Carbon steel, alloy steel
Suitable for Piston rod, torsion rod, sucker rod
Process Hardening and tempering

Product Detail

Application Video

Product Tags

bar hardening and tempering furnace

Yuantuo piston rod hardening and tempering furnace adopts IGBT inverter and 12 pulse incoming line, automatic feeding, automatic heating, automatic cooling and discharging. We set four sets of high accuracy infrared thermometer on quenching part and tempering part, which can ensure the heating temperature is in the required range, thus ensuring the production quality.

Due to the different application and working condition of piston rods, sometimes the piston rod must be processed with coating rolling, hardening and tempering, nitriding and so on. Through these processes, piston rod performance can reach the application requirement.

However, not all the types of piston rods need hardening and tempering process. Whether need this process mainly depends on the piston rod raw material. But after hardening and tempering, the piston rod can get the following advantages:

1.Effectively improve the working intensity of the material.

2. After hardening and tempering, it can have good comprehensive mechanical properties.

3. Contribute to the sealing of surface micro-cracks, impede the expansion of erosion, and improve the ability of the surface to resist corrosion.

4.Effectively eliminate the internal stress generated by quenching to achieve the desired mechanical properties.

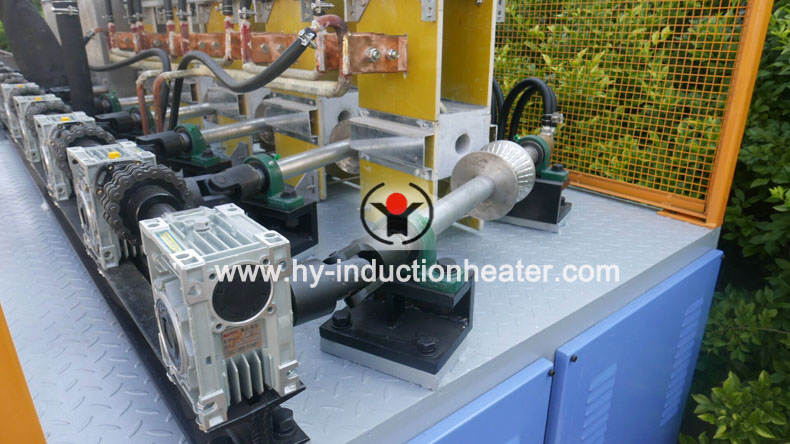

Piston rod hardening and tempering

 Piston rod hardening and tempering furnace includes the following parts:

1.Feeding device
2.Transportation roller table
3.Induction heating system for quenching
4.Spraying cooling system
5.Induction heating system for tempering
6.Automatic turning material device
7.Water circulation system
8.Electrical control system

Piston rod hardening an tempering furnace working process

Manual feeding → Roller transportation → Induction heating for quenching → Spraying cooling for quenching →  Roller transportation → Induction heating holding for tempering  →  Spraying cooling for tempering  →  Roller transportation  →   Chain walking cooling table  → Pipe receiving platform

Remark: All parameters are subject to meeting the requirement of performance and capacity.


    Diameter Automatic Control Power Design
    Ø18-Ø28 mm(bar) PLC Control IGBT200KW Hardening
    Ø30-Ø70mm( bar) PLC Control KGPS350KW Hardening
    Ø80-Ø110( bar) PLC Control KGPS450KW Hardening
    Ø16-Ø32 mm(rod) PLC Control IGBT200KW Hardening
    Steel bar diameter Automatic Control Power Design
    Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
    Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
