Automobile torsion bar quenching tempering

Automobile torsion bar quenching tempering

Features:

Application: Quenching & Tempering

Material Heated:45#,40Cr,42CrMo,65Mn

Heating way: Induction heating

Product Detail

Application Video

Product Tags

bar hardening and tempering furnace

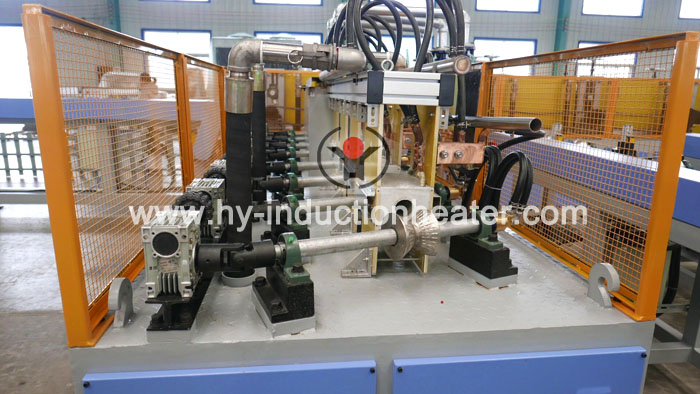

Automobile torsion bar quenching tempering line

●  Product name:Automobile torsion bar quenching tempering line, Automobile torsion bar  induction heat treating line
●  Diameter: ø10-100 mm
●  Heating way: Electromagnetic induction heating

http://www.hy-inductionheater.com/products/automobile-torsion-bar-quenching-tempering.html

Automatic Automobile torsion bar quenching tempering line consists of medium frequency power supply, capacitor cabinet,inductors, automatic feeding device, unloading device and control cabinet.

Automobile torsion bar quenching tempering line advantages

●  Reasonable control for the distance between the inductor and the quenching ring; shortening the time that the hot bar expose to the air; reducing the scale bar, reducing energy consumption.
●  According to the setting process parameters, automatic control for the speed of the transmission mechanism.
●  When there is no workpiece in the inductor, the automatic control system can automatically reduce the output power of the intermediate frequency power supply; when the workpiece enters the inductor, and the automatic control system can automatically increase the output power of the intermediate frequency power supply.
●  New design for the water spray cooling system, eliminate water plugging phenomenon, improving the stability of quenching.
●  During the transmission of the workpiece, the work piece will forward and rotate at the same time,ensuring the uniformity of the heating and quenching of the workpiece.
●  Mature technology for Automobile torsion bar quenching tempering. There is infrared thermometer device for quenching and tempering process,which achieves automatic control of heating temperature.

Automobile torsion bar quenching tempering line Configuration

●  High strength welded machine body,fine maching after aging treatment , stable performance.
●  Motor for feeding bars: frequency control.
●  Temperature measurement: Online temperature measurement for quenching heating temperature and tempering temperature, temperature closed-loop control can be achieved.
●  Inductor replacement: manual.
●  Adjustable inductor matching.
●  Alarm: sound / light fault alarm, alarm and record display on control interface
●  Connection for inductor and sprinkler cooling interface: stainless steel / Brass quick change joint.
●  Electronic control mode: PLC/ touch screen +PLC simple CNC.
●  The machine control system has function of various process parameters monitoring and record, historical inquiry, online monitoring and output printing.
●  Loading & unloading: fully automatic loading and unloading mechanism
