PC steel bar heating production line

PC steel bar heating production line

Features:

Application PC steel bar heating, hardening, tempering, annealing
Power 100 KW-10000 KW
Non standard
Professional Customization

Product Detail

Application Video

Product Tags

http://www.hy-inductionheater.com/products/pc-steel-bar-heating-production-line.html

Product NamePC steel bar heating production line

Typical Application:

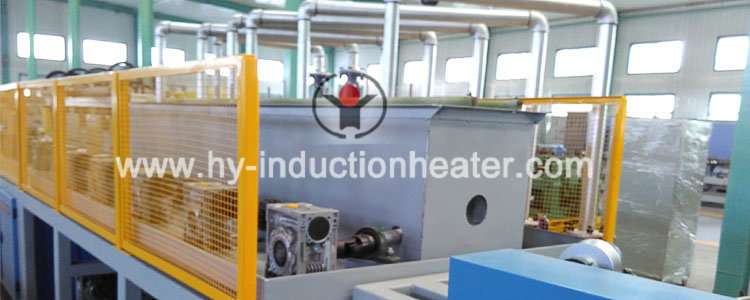

Forever is specialized in supplying PC steel bar heating production line, PC steel bar hardening and tempering system.The complete system includes PLC console, automatic feeding,cylinder feed, induction heater,automatic discharging device with advanced  design technology and reliable quality.

http://www.hy-inductionheater.com/products/pc-steel-bar-heating-production-line.html

Technical parameters

Material: 30MnSi

Specification: Ø7.1 mm-12.6 mm

Hardening temperature: 930℃-960℃

Tempering temperature: 400℃-460℃

The Max.line speed:

Ø 7.1 mm specifications        110 m / min
Ø 9.0 mm specifications        100 m / min
Ø 10.7 mm specifications       70 m / min
Ø12.6 mm specifications        45 m / min

Electricity consumption: 400 degree per ton

Working mode: Continuous

Features for PC steel bar heating production line

● Fast heating speed, high production efficiency, less oxidation,saving materials and costs and increase the life of the mold.

● Good working environment and improve the working environment and the company’s image.

● Good energy saving effect, low energy consumption and less burning loss.

● God start performance. Empty furnace and  full furnace can start 100%.

● Good electric heating operating environment.

If you are looking for PC steel bar induction heat treating equipment, please feel free to contact us.

Welcome to visit our websitehttp://www.hy-inductionheater.com/
