Bar quenching and tempering

Bar quenching and tempering

Features:

Application: Hardening & Tempering

Material Heated:45#40Cr42CrMo65Mn

Diameter Allow: Φ20-110mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

bar hardening and tempering furnace

Product Name: Bar quenching and tempering

Typical Application:

Providing energy saving solutions and reliable control system, Forever automatic bar hardening and tempering furnace is mainly used for steel quenching and tempering such as steel bar, round bar, steel pipe, grinding rod, sucker rod, drilling pipe, drill rod, anchor bolt, steel plate and so on.

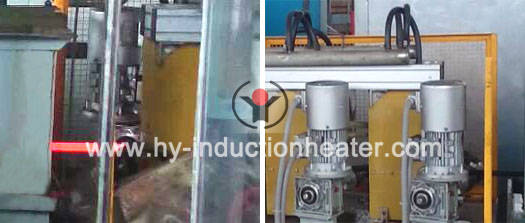

long bar quenching and tempering

Metal hardening processes are used to impart specific mechanical properties to a component in order to render it fit for use.
Tempering is a low temperature (150ºC to 650ºC) heat treatment intended to remove the stresses and brittleness caused by quenching and to develop the required mechanical properties.

Bar quenching and tempering with electromagnetic induction heating

● Uniform heating, very less oxidation
● Frequency Control and heating times
● Cooling control
● Energy saving
● No physical contact
● Control and located heat
● Can be integrated in production lines
● Improved environmental conditions

http://www.hy-inductionheater.com/induction-heat-treating

Bar quenching and tempering production line parts

● Automatic feeder,transmission device
● Induction heating furnace
● Quenching box
● Tempering furnace
● Automatic discharging
● IF power supply
● Remote console

The bar quenching and tempering machine adopts PLC control :

● Provide remote operation console with touch screen or IPC based on user needs.

●  Specially customized man-machine interface, highly humanized operation instructions, one person can operate a complete set of bar quenching and tempering system, saving labor and costs.

●  All-digital, high-depth adjustable parameters: Once user input the bar grade and size, the system will automatically recall the relevent parameters without manually record, inquiry or inupt.

●  Strict grade management system and one key to original. If you have problem during debugging, this button can make the program to the original status.

Successful cases

Steel bar diameter Automatic Control Power Design
Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-v110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

As our steel bar quenching furnace is all customized, the above parameters are only for your reference.Please contact us for more detailed price & solution.
