Long bar quenching

Long bar quenching

Features:

Application: Hardening & Quenching

Material Heated:45#,40Cr,42CrMo,65Mn

Bar Diameter Allow: Φ20-110mm

Pipe Diameter Allow: Φ60-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name:Long bar quenching machine

Typical Application:

Long bar quenching is used to increase hardness and mechanical strength of steel in a specific area. Steel material will be heated to a temperature slightly higher than the upper critical (between 850-900ºC) and then cooled very quickly in a quenching medium such as oil, air, water etc.

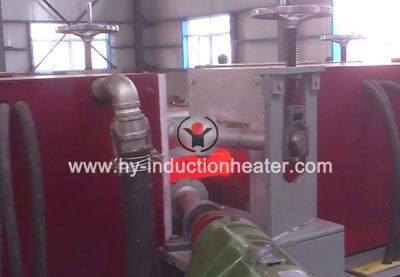

long bar quenching

Advantages

  • Efficient and quick heating
  • Accurate, repeatable heating
  • Safe heating as there is no flame
  • Equipped with infrared pyrometer and automatic feeder
  • New type power supply, saving power

http://www.hy-inductionheater.com/products/induction-quenching-equipment.html

Applications

  • Sucker rod horizontal induction quenching machine  see video
  • Drill pipe,drill rod induction quenching  see video
  • Long bar induction quenching  see video
  • Long shaft  induction quenching
  • Slab induction quenching  see video
  • Anchor bolt induction quenching  see video

    Successful cases

    Steel bar diameter Automatic Control Power Design
    Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
    Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-v110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
    Pipe diameter Automatic control Power design
    Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

    As our induction heater is all customized, the above parameters are only for your reference.

    http://www.hy-inductionheater.com/products/long-bar-hardening-and-tempering-production-line.html http://www.hy-inductionheater.com/products/long-bar-hardening-and-tempering-production-line.html http://www.hy-inductionheater.com/ http://www.hy-inductionheater.com/products/long-bar-hardening-and-tempering-production-line.html

    Welcome to contact us at tom@foreverfurnace.com for more detailed price & solution.
