IF heat treatment furnace

IF heat treatment furnace

Features:

Application: Hardening , Quenching & Tempering

Material Heated:45#,40Cr,42CrMo,65Mn

Bar Diameter Allow: Φ20-110mm

Pipe Diameter Allow: Φ60-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

http://www.hy-inductionheater.com/products/induction-heat-treatment-equipment-2.html

Product Name: IF heat treatment furnace

Typical Application:

IF induction heat treatment furnace is widely applied in  hardening, quenching and annealing field. The power of IF  heat treatment furnace can be 100-8000KW, which is using induction heating process,automatic feeder,new type power supply and quality raw material.

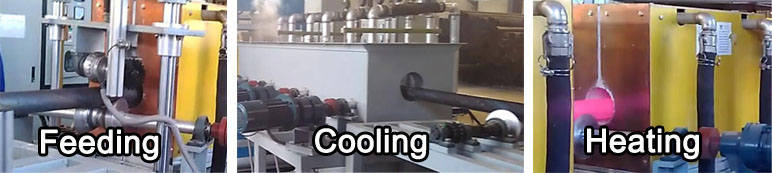

induction heat treatment system

Advantages for IF heat treatment furnace

  • High reliability:Adopt famous brand components of IGBT converter which reduce fault rate and make sure the equipment can run reliably.
  • Safe and reliable.There are reliable protection covers for the mechanical rotating parts,which is durable and very safe for operators. Automatic protections for water temperature,water pressure,phase shortage,overcurrent and undervoltage.
  • Easy installation & commission and simple operation.
  • Transmission mechanism frame has sufficient strength and rigidity for ease of installation of equipment
  • Feeding and discharging table is using high quality steel welded firmly, which can withstand a certain impact load.

http://www.hy-inductionheater.com/induction-heat-treating

The characteristics of IF heat treatment furnace are as follows:

  • (Fine grain and high hardness on the surface. After induction quenching,fine martensite structure will be obtained. The hardness of the martensite is 2 – 3HRC higher than that of the conventional quenching, and the core basically maintains the microstructure and properties before heat treatment.
  • The heating speed is very fast and the heating time is very short. It usually takes only a few seconds to dozens of seconds to complete. Workpiece is not easy to produce oxidative decarburization, quenching deformation is also very small.
  •  High thermal efficiency, high productivity, good production environment, easy to realize mechanization and automation.
  • The depth of hardened layer is easy to control. The depth of the hardened layer is controlled by controlling the current frequency.

    project cases

    Steel bar diameter Automatic Control Power Design
    Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
    Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-v110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
    Pipe diameter Automatic control Power design
    Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

    As our induction heater is all customized, the above parameters are only for your reference.

    http://www.hy-inductionheater.com/products/induction-quenching-line.html

    Welcome to contact us at sales@foreverfurnace.com for more detailed price & solution.
