Induction hardening tempering

Induction hardening tempering

Features:

●  Diameter: 20-300mm
●  Length: Not limited
●  Heating method: Magnetic induction heating
●  Line speed: As per user’s requirements

Product Detail

Application Video

Product Tags

Induction hardening tempering

Forever can manufacture Induction hardening tempering line as per user’s specific requirement. So far, Forever has finished Philippines 800Kw drill pipe Induction hardening tempering line, Japan 600KW bar Induction hardening tempering line, rebar 1200KW Induction hardening tempering line, 500KW wind turbine bolt Induction hardening tempering line, 400KW grinding rod Induction hardening tempering line.

●  Diameter: 20-300mm
●  Length: Not limited
●  Heating method: Magnetic induction heating
●  Line speed: As per user’s requirements

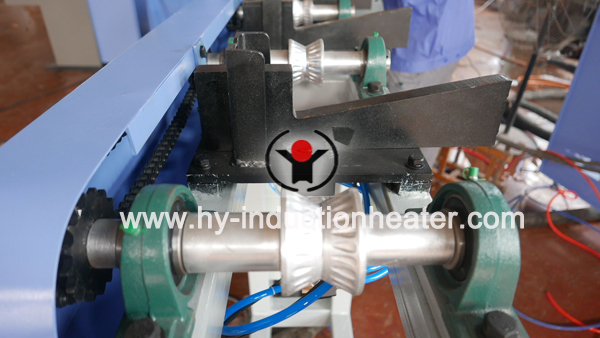

induction hardening tempering furnace

Forever Induction hardening tempering line technical Parameters

1.All the circuit is digital, and all parameters can be set and modified in the touch screen or remote devices with high reliability, anti-interference ability, fast response and so on.

2.According to different diameter of workpiece, Forever will design different induction heater. Wide range can meet wide range of workpieceheat treatment to get higher heating efficiency. The length of induction heaters for tempering is longer than induction heater for quenching, which can make workpiece get uniform and better induction heat treating effect. The internal structure will be uniform and stable ensure that the workpiece performance to meet the requirements.

3.The pressure roller and the rollers between each induction heating coils are made of 304 non-magnetic stainless steel, inclined and water cooling, greatly extending the life of the roller.

4.Forever new design of adopting ceramic roller can reduce the deformed bars wear and no burning during deformed bars running on the roller table.

5.The deformed bar hardening and tempering line spray system is using multi-stage stainless steel water ring, and the pressure and flow of the water ring can be automatically adjusted to meet the requirements of different hardenability.

6. The workpiece after hardening and tempering doesn’t need straightening, no bending and no deformation. So the customer doesn’t need to buy special straightening machine.

cases

Steel bar diameter Automatic Control Power Design
Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
Pipe diameter Automatic control Power design
Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

Contact-Us-Banner-1024x243-copy-copy

Contact person: Hailee Ma

Email:sales@foreverfurnace.com

Phone: 0086-18932783253(whatsapp, wechat)

Specialist of induction heating equipment and system in China; Glad to be your business partner in induction heating field.
