Reinforcing bar hardening and tempering

Reinforcing bar hardening and tempering

Features:

●  Reinforcing bar diameter: 25-32mm
●  Reinforcing bar material: HRB300, HRB400, HRB500
●  Heating way: Induction heating

Product Detail

Application Video

Product Tags

Reinforcing bar hardening and tempering

Over 3 months, finally Forever reinforcing bar hardening and tempering line has been finished This reinforcing bar hardening and tempering line consists of 4 sets of IF power supply, two sets of induction heaters, automatic feeding and discharging system,  storage platform and receiving platform, two sets of cooling machines.

●  Reinforcing bar diameter: 25-32mm
●  Reinforcing bar material: HRB300, HRB400, HRB500
●  Heating way: Induction heating
●  Cooling system: Enclosed cooling machine and water pool

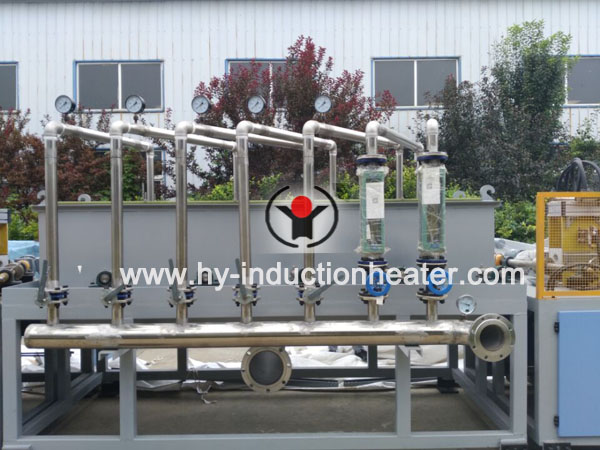

Reinforcing bar hardening and tempering line

Forever reinforcing bar hardening and tempering line features

●  The reinforcing bar hardening and tempering line is controlled by series resonant power, all digital and high efficiency.

●  Fast heating speed, less oxidation skin and long service life

●  Automatic feeding and discharging which are controlled by German Siemens PLC system.

●  The temperature control accuracy is easy to achieve uniform heating, and there is very small temperature difference from the surface to the core.This can ensure the reinforcing bar quality requirement from the base.

●  Using import SEW motor, each motor will be drived by a reducer.

●  According to different diameter of reinforcing bars, Forever match different induction heaters to meet wide range of bars. Each induction heater has water and power connection to make induction heater replacement easier.

●   Frequency inverter control: The bar running speed can be adjustable as per the production requirements.

●  As induction heating principle is making the workpiece to generate the heat by itself, this heating method has no pollution.

cases

Steel bar diameter Automatic Control Power Design
Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
Pipe diameter Automatic control Power design
Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
