PC bar hardening and tempering

PC bar hardening and tempering

Features:

●  Energy-saving IF power supply
●  Siemens PLC control system
●  Induction heating coils
●  Spraying cooling machine
●  Automatic feeding and discharing system
●  Cooling system for the full line

Product Detail

Application Video

Product Tags

PC bar hardening and tempering line

Forever is committed to the production and design of PC bar hardening and tempering line for more than ten years, which has advantages of mature and stable process and reliable operation. As the PC bar hardening and tempering line has complete parameters monitoring an record, only one operator can control the full line. The user can recall the previous production process parameters at any time.

PC bar hardening and tempering line configuration

●  Energy-saving IF power supply
●  Siemens PLC control system
●  Induction heating coils
●  Spraying cooling machine
●  Automatic feeding and discharing system
●  Cooling system for the full line

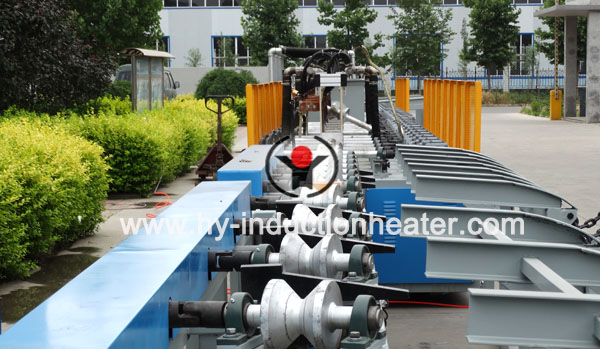

PC bar hardening and tempering line

PC bar hardening and tempering line advantages

1.Intelligent series resonant IF power control, rectifier fully open, high power factor. Harmonic components are small.

2.The roller before and between the furnace adopts 304 stainless steel and through water for cooling, which greatly extend the roller life.

3. Spraying cooling system is using multi-stage stainless steel water ring, the water flow and pressure can be adjustable to meet the requirements of different hardenability.

4.Closed-loop control system adopts America Raytek infrared thermometer to measure the heating temperature.

5.The PC bars will not bend after induction heat treating with our line. The user needn’t to buy any straightening machine.

cases

Steel bar diameter Automatic Control Power Design
Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
Pipe diameter Automatic control Power design
Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
