PC bar heat treatment

PC bar heat treatment

Features:

●  Uniform heating, good Straightness
●  Available for different diameter of PC bars
●  Energy saving, no pollution

Product Detail

Application Video

Product Tags

PC bar heat treatment line configuration

●  Energy-saving IF power supply
●  PLC control system
●  Induction heating system
●  Spraying cooling system
●  Mechanical transmission system
●  Cooling system for the full line

PC bar heat treatment line work process:

Automatic feeding → frequency conversion roller conveyor → rotary heating → rotating water → variable frequency roller output → receiving.

The entire process is automatically completed by the PLC and keep record for the production datas including power, voltage, temperature curve, running speed, current etc.

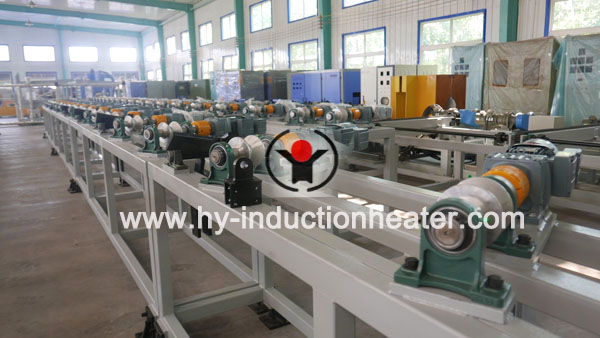

PC bar heat treatment line

Forever PC bar heat treatment line remote console and human-machine interface

● Provide remote console with touch screen or IPC system on user demand.

● Customized human-machine interface,high user-friendly operation instruction.

● All-digital, high depth adjustable parameters that make you easy to control the equipment with great efficiency.

● Strict purview management system and perfect one key to restore system.

● Provide corresponding language switching according to different countries and regions.

Forever PC bar heat treatment line features

●  The PC bar hardening and tempering line is controlled by series resonant power, all digital and high efficiency.

●  Fast heating speed, less oxidation skin and long service life

●  Automatic feeding and discharging which are controlled by German Siemens PLC system.

●  The temperature control accuracy is easy to achieve uniform heating, and there is very small temperature difference from the surface to the core.This can ensure the PC bar quality requirement from the base.

●  Using import SEW motor, each motor will be drived by a reducer.

●  According to different diameter of reinforcing bars, Forever match different induction heaters to meet wide range of bars. Each induction heater has water and power connection to make induction heater replacement easier.

●   Frequency inverter control: The bar running speed can be adjustable as per the production requirements.

●  Forever is responsible for the full line supply and technical support about PC bar induction heat treating.

cases

Steel bar diameter Automatic Control Power Design
Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
Pipe diameter Automatic control Power design
Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
