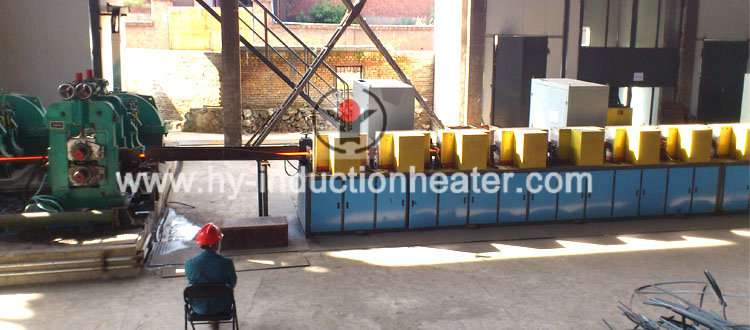

PC Steel bar induction heating furnace
Features:
| Application | Steel bar heating,forging and quenching |
| Power | 100KW-10000KW |
| Non-standard |
Professional Customization |
Product Detail
Application Video
Product Tags
Product Name: steel bar induction heating furnace
Typical Applications:
Forever steel bar heating furnace can be used for heat treating for steel bar,steel pipe,aluminum bar,steel billet,steel slab and shaft.The user can tell us your steel bar diameter and length,heating temperature and production capacity,then we will give you the best offer with technical parameters.
Forever steel bar heating furnace GTR series
| Type | Power (KW) | Frequency（HZ） | Bar Diameter（mm） | Heating Temperature（℃） |
| GTR-50 | 50 | 8 | 10-30 | 1200 |
| GTR-100 | 100 | 8 | 20-40 | 1200 |
| GTR-160 | 160 | 6 | 30-50 | 1200 |
| GTR-250 | 250 | 4 | 40-60 | 1200 |
| GTR-350 | 350 | 2.5 | 50-80 | 1200 |
| GTR-500 | 500 | 1 | 60-90 | 1200 |
| GTR-750 | 750 | 1 | 80-120 | 1200 |
| GTR-1000 | 1000 | 1 | 100-150 | 1200 |
| GTR-1500 | 1500 | 0.5 | 120-180 | 1200 |
| GTR-2000 | 2000 | 0.5 | 150-240 | 1200 |
| GTR-2500 | 2500 | 0.3 | 180-270 | 1200 |
| GTR-3000 | 3000 | 0.3 | 240-320 | 1200 |
Features of Forever steel bar heating furnace
● Quick change type furnace design.
Most customers will use the same equipment to do heat treatment for various sizes of steel bar,then you only need to change the inductor to heat different diameter steel bars.It is very easy and convenient.You only need to take five minutes.
● Our steel bar heating furnace has infrared thermometer design at the discharging furnace port. You can monitor the heating temperature easily.
● PLC closed loop control.
With this system,you can control heating temperature by adjusting the power.
● High automation.
Our factory can equip automatic feeding and discharging device,water cooling tank ,PLC console and IGBT power supply to realize the real automation,which reduced the labor cost and improve productivity greatly.
More details about our induction heat treating equipment, please link to http://www.hy-inductionheater.com/bar-induction-heating-equipment
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
