Oil casing induction heat treatment furnace

Oil casing induction heat treatment furnace


Application Oil casing heat treatment, hardening, tempering, heating
Power 100 KW-10000 KW
Non standard
Professional Customization

Product Detail

Application Video

Product Tags

Product NameOil casing heat treatment furnace

Typical application:

Forever oil casing heat treatment furnace is available for oil casing heat treatment such as oil casing hardening, oil casing tempering, oil casing heating and so on. If you are interested in our oil casting induction heat treating equipment, please contact us.

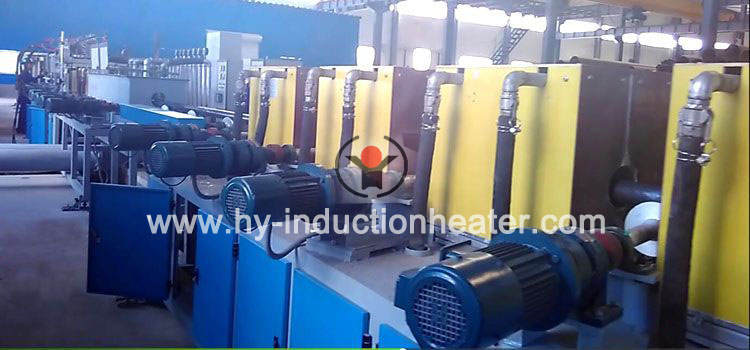

Oil casing pipe hardening and tempering furnace composition

● Power supply composition : The complete set of system consists of four sets of power supplies.

                                          Hardening 500KW / 1000HZ     Hardening pier special temperature compensation: 120KW / 1000HZ

                                          Tempering 200KW / 500HZ        Tempering pier special temperature compensation: 80KW / 500HZ

● Transmission roller table: The angle between roller axis and work piece axis is 18 ~ 21 °. The work piece is rotating and go forward at the uniform rate for uniform heating. Rollers between furnace are 304 non-magnetic stainless steel and water-cooled.

● Feeding system: Independent motor reducer drive for each axis , independent inverter control; flexible design speed differential output, section speed control.

● Piers temperature compensation system: As the pier diameter is different from the middle part of the sleeve, we design special temperature compensation system. Induction furnace for temperature compensation can be  online tracking and compensate temperature precisely ensuring that the temperature difference between the pier and middle part can be controlled within 20℃.

 Recipe management function: Powerful recipe management system–after inputting parameters of steel grade, outer diameter and wall thickness, this system can automatically call the relevant parameters, no need to manually record, check, input required parameters  for various work piece.

● Multiple closed-loop function: For power supply system unstable of underdeveloped areas and countries, we have designed high-grade temperature, voltage and other multi-channel closed-loop system.Under the conditions that the supply voltage fluctuation is up to 20% and intermittent working with generator set, our equipment can still guarantee high consistency of product process.

750质量英文版 001_副本

More details about induction heat treating furnace , please send us inquiry at

Overseas manager: Tom Wang

Phone: 0086-13303078975(whatsapp, wechat,line)

Specialist of  bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
