Induction pipe hot rolling furnace

Induction pipe hot rolling furnace


Application: Forging ,Rolling

Material: Carbon steel, Alloy steel, Stainless steel, Aluminum

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

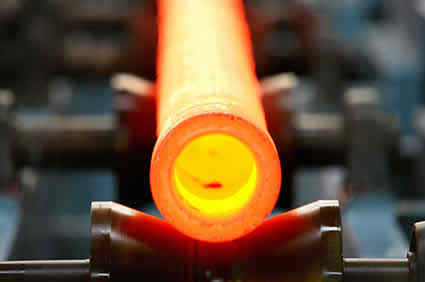

induction pipe hot rolling furnace

Our hot rolling pipe induction furnace is used for pipes induction heating before rolling,  which has good features of high efficiency, less oxide scale, no preheating time & precious temperature control.

rolling pipe furnace

Hot rolling pipe induction furnace technical parameters

●     Cooling way: Closed cooling tower, no need water pool, only supply water and power, the system can start to work.
●     Heating steel type:General carbon steel, alloy steel, stainless steel
●     Heating way: electromagnetic induction heating
●     Transportation way: Roller table
●     Suitable process : Forging, rolling ,heat treatment

Hot rolling pipe induction furnace application

● Pipes,tubes       ● Rebar, deformed bar
● Steel bar,round bars                          ● Sucker rod,drill rod
● Plate, sheet                         ● Seamless pipe,thick-walled pipe

Main control system

Siemens PLC and 10-inch color touch screen;there is United States Raytek infrared thermometer in the inlet and outlet of the furnace,which achieves closed-loop control and production control.

    Successful cases

    Bar Diameter Bar Length Heating Temp. Production capacity
    Φ36-45mm 1500mm 1125°C ± 25 3T/H
    Ø60mm 6000mm 1200℃ 4.4T/H
    Ø70mm 6000mm 1200℃ 5.3T/H
    Ø80mm 6000mm 1200℃ 6T/H

    750质量英文版 001_副本


    As our induction heater is all customized, the above parameters are only for your reference.
