Grinding media hot rolling mill
Features:
Manufacturing Process:Hot rolling
Material Heated:65MN 60MN 70Cr2 B2 B3 40cr 45#
Steel Ball Diameter: Φ20-150mm
Length Allow:Not limited
Product Detail
Application Video
Product Tags

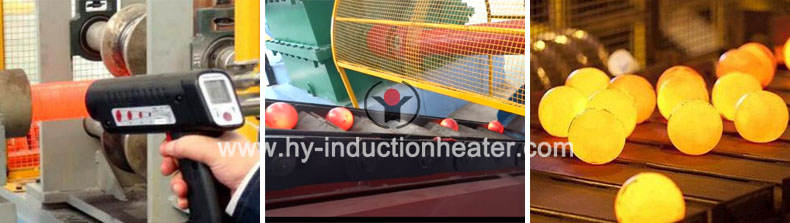

Product Name:Grinding media hot rolling mill
Production process:Skew rolling
Heating way: Induction furnace
Basic components:Induction furnace+skew rolling mill+roller quenching system+PLC console
Typical Application:
Hot rolled grinding media is a latest grinding media rolling technology, it is the technical breakthrough of grinding media milling manufacturing process, and it is replacement of casting steel ball gradually. Grinding media hot rolling mill is a high production rate steel ball making machine
Forever designs the grinding media hot rolling mill is fully automatic production line, upto the latest levels of hot-rolled steel ball production. Forever designs and manufactures series grinding media hot rolling production line, including 20, 30, 40, 50, 60, 80, 100, 120,150 etc complete size of steel balls miller lines, can produce φ 20 ~ 150 mm different size steel balls.
| Model | Unit | φ 20 | φ 30 | φ 40 | φ 50 | φ 60 | φ 80 | φ 100 | φ 120 |
| Steel ball diameter | mm | 15-20 | 20-30 | 30-40 | 35-50 | 40-60 | 60-80 | 70-100 | 80-120 |
| Roller diameter | mm | 170 | 220 | 260 | 300 | 340 | 450 | 600 | 690 |
| Roller angle range | o | 0-5 | 0-6 | 0-6 | 0-8 | 0-6 | 0-8 | 0-7 | 0-7 |
| Productivity | pcs/m | 120 | 102 | 90 | 72 | 72 | 64 | 50 | 40 |
| Motor power | Kw | 30 | 40 | 80 | 130 | 185 | 450 | 650 | 1000 |
Advantages of grinding media hot rolling mill
- Main body is with good rigidity.
- Adjust is easy.
- Locking is solid, high stability.
- Easy to change guide plate.
- Production is compete automation, high production efficiency,large output.
- Low energy consumption, no pollution.
Advantages of hot rolled steel balls
- Good surface and roundness
- Equilibrium Internal and external hardness(<5HRC)
- Low broken rate, long working life
- High density, strong impact toughness
- High performance price ratio, cost saving is obvious
Successful cases for grinding media hot rolling mill:
|
Steel ball diameter |
Unit weight（g） |
Production capacity（PCS/Minute） |
Production capacity（KG/H） |
|
Ø25mm |
72 |
100 |
432 |
|
Ø35mm |
197 |
80 |
945 |
|
Ø30mm |
125 |
100 |
750 |
|
Ø40mm |
296 |
80 |
1420 |
|
Ø50mm |
578 |
58 |
2011 |
|
Ø50mm |
578 |
50 |
1734 |
|
Ø60mm |
999 |
50 |
2997 |
|
Ø70mm |
1586 |
30 |
2854 |
|
Ø80mm |
2367 |
20 |
2840 |
|
Ø80mm |
2.367 |
60 |
8521 |
|
Ø100mm |
4.14 |
10 |
2484 |
|
Ø125mm |
7.18 |
10 |
4308 |
