bar hot rolling heating furnace for forging

bar hot rolling heating furnace for forging


Application: Forging ,Rolling

Material: Carbon steel, Alloy steel, Stainless steel, Aluminum

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Hot rolling bar

Hot rolling is a mill process which involves rolling the steel at a high temperature (typically at a temperature over 1700° F), which is above the steel’s recrystallization temperature. When steel is above the recrystallization temperature, it can be shaped and formed easily, and the steel can be made in much larger sizes.

Our  Hot rolling bar heating furnace is used for bars induction heating before rolling, also can be used for rod, pipe, billet etc.

Induction heating is efficient, easily controlled, uses no energy when not heating, and puts the heat where you want it, when you want it. No idle time, no massive refractories to heat, and close coupling enables you to use energy in the best possible way.

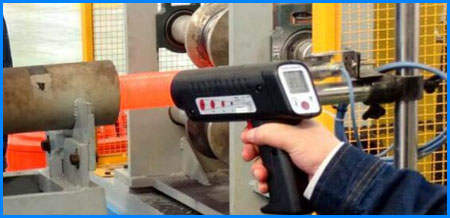

Heating bars for rolling

Hot rolling bar induction furnace Application

●     Hot rolling/ reheating of Bars
●     Hot rolling/ reheating of Rods
●     Hot rolling/ reheating of Slabs
●     Hot rolling/ reheating of Plates
●     Hot rolling/ reheating of Billets

Hot rolling bar induction furnace control system

Siemens PLC and 10-inch color touch screen;there is United States Raytek infrared thermometer in the inlet and outlet of the furnace,which achieves closed-loop control and production control.

Mechanical part

●    Bar storage rack
●    Automatic feeder
●    Roller conveyor

    Successful cases

    Bar Diameter Bar Length Heating Temp. Production capacity
    Φ36-45mm 1500mm 1125°C ± 25 3T/H
    Ø60mm 6000mm 1200℃ 4.4T/H
    Ø70mm 6000mm 1200℃ 5.3T/H
    Ø80mm 6000mm 1200℃ 6T/H

    750质量英文版 001_副本


    As our induction heater is all customized, the above parameters are only for your reference.
