Horizontal shaft induction quenching machine

Horizontal shaft induction quenching machine


Round diameter 100-220mm
Length 6000mm
Hardness HRC50-57
Quenching depth 1-3mm

Product Detail

Application Video

Product Tags

Technical requirement for Horizontal shaft quenching machine

1. Round bar diameter: 100-220mm, length–6 meters

2. Heating temperature: 900-930 ℃

3. Quenching hardness: HRC50-57

4 Quenching depth: 1-3mm

5.Quenching speed: 2-8mm / s

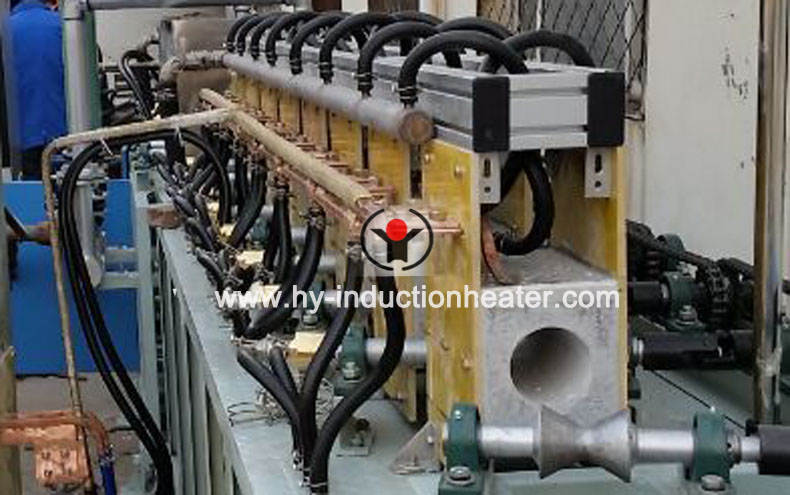

 horizontal shaft quenching

 Horizontal shaft quenching machine Power supply cabinet features

● Composite parallel resonance power supply design, chopping power-regulation. This design both has high stability, high adaptability of parallel resonance and advantages of series resonance high power factor and energy-saving.

● Based on the IGBT full-controlled device design, this power supply has complete protection functions which can be intelligent maintenance-free in the maximum scope. Single power supply can cover all the induction heating areas to meet your diverse requirements.

● Self-Adaptive at frequency variation or load variation;the frequency adaptation range is 200-300KHz; induction furnace replacement is automatic matching, no need to make any manual adjustments.

● The power supply cabinet adopts T2 copper which is processed by sandblasting and passivation; low leakage inductance, antioxidant, effectively reducing line losses.

● Full touch screen control, pure digital setting, with complete process record and strict purview control.The main parameters can be one key recovery of the factory settings.

● Per single output power 50-6000KW, frequency 200-300KHz.

Horizontal shaft quenching machine Cooling system

Main features:

(1) Circulating enclosed cooling machine, no impurities to enter, to ensure the purity of the water;

(2) The water circulating water is using soft water, no scaling, do not plug the pipeline;

(3) Small footprint, you can move according to need;

(4) Small energy consumption, simple and reliable operation.

Horizontal shaft quenching machine Temperature control

Infrared thermometer (including digital display, installed in screen on the quenching machine CNC system) for induction heat treating furnace.

Temperature closed-loop control, the heating temperature can be automatically adjusted to ensure that the heating temperature is in the bar heating range.


    Diameter Automatic Control Power Design
    Ø18-Ø28 mm(bar) PLC Control IGBT200KW Hardening
    Ø30-Ø70mm( bar) PLC Control KGPS350KW Hardening
    Ø80-Ø110( bar) PLC Control KGPS450KW Hardening
    Ø16-Ø32 mm(rod) PLC Control IGBT200KW Hardening
    Steel bar diameter Automatic Control Power Design
    Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
    Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
