Steel bar quenching furnace

Steel bar quenching furnace


Application: Hardening & Quenching

Material Heated:45#,40Cr,42CrMo,65Mn

Bar Diameter Allow: Φ20-110mm

Pipe Diameter Allow: Φ60-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name: Steel bar quenching furnace

Typical Application:

Forever Steel bar quenching furnace is widely used for round bar, piston rod, grinding rod, sucker rod, anchor bolt,blade, steel wire and we have successful cases for each kind of workpiece. With 13 years’ experience in designing and manufacturing bar quenching furnace, Forever will provide you with energy saving proposal as per your production need.

Steel bar quenching furnace advantages

●  Available for wide range diameter bars with one line
●  Good linearity, no need straightening
●  Automatic feeding, heating, cooling discharging & receiving

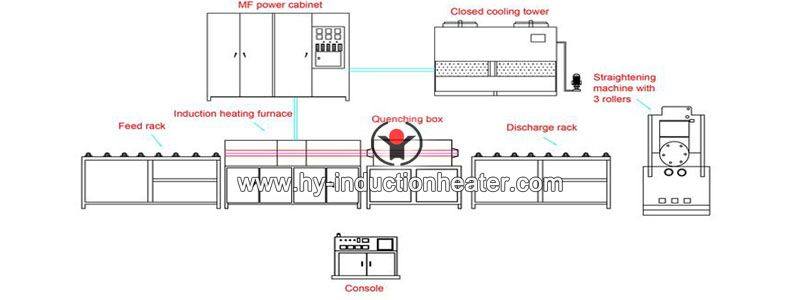

induction hardening production line

Quenching technique (limited to certain high strength alloy steels) that reduces the residual internal stresses and distortion resulting from non-uniform transformation and thermal shock typical of conventional oil quenching.

Induction heating bars for surface & through quenching

  • Fast heating speed, high production efficiency, less oxidation,saving materials and costs and increase the life of the mold.
  • Good working environment and improve the working environment and the company’s image.
  • Good energy saving effect, low energy consumption and less burning loss.
  • God start performance. Empty furnace  and  full furnace can start 100%.
  • Intelligent console, you an finish all the operations in the touch screen.


    Diameter Automatic Control Power Design
    Ø18-Ø28 mm(Steel bar) PLC Control IGBT200KW Quenching
    Ø30-Ø70mm(Steel bar) PLC Control KGPS350KW Quenching
    Ø80-Ø110(Steel bar) PLC Control KGPS450KW Quenching
    Ø16-Ø32 mm(Sucker rod) PLC Control IGBT200KW Quenching
    Shaft diameter Shaft length Heating Temp. Quenching depth Production capacity
    Ø16 4m 900℃ 1.12.3mm 120 PCS/H
    Ø25 4m 900℃ 1.12.3mm 60 PCS/H
