Deformed bar heat treatment machine

Deformed bar heat treatment machine

Automatic intelligent deformed bar heat treatment line is mainly used for high-strength hot rolled deformed bar. After heat treatment, the strength and toughness of the deformed bars will improve greatly.

●  Product Name : Deformed bar heat treatment line

●  Sway bar diameter: ø16-50mm

● Heating method::Induction heating

●  Productivity capacity: As per users’s requirement

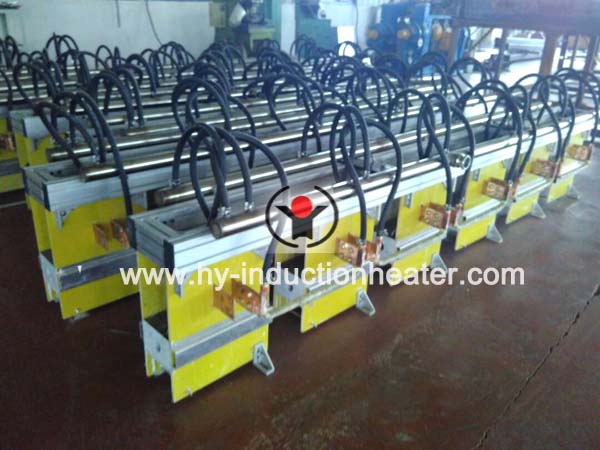

                                                                                                      Induction heating coils

Deformed bar heat treatment line working process

Automatic feeding – Induction Heating System – Water spraying system-High tempering system-Automatic discharging-Natural cooling

Deformed bar heat treatment line advantages

1.Deformed bar heat treatment line conveyor rollers are made of 304 non-magnetic stainless steel. As the angle between roller shaft and the workpiece is 18-21 degrees, the deformed bars can go forward and self-rotate by itself at the same time.

2.The feeding system for deformed bar heat treatment line adopts import Nord reducers which are independent inverter control.

3.The equipment uses the design that supply oil for motor and bearing to maintain the service life of components.

4.The input system pneumatic components is using well-known brands such as: cylinder, motor, controller, etc.

5.Deformed bar heat treatment line is using PLC automatic control system to control the entire production line with saving labor.

6.After heat treatment, the temperature fluctuation range is ± 10 ℃.

7. After hardening and tempering induction heat treating, the deformed bar has a high toughness and impact strength.
