Bar quenching tempering

Bar quenching tempering


Application: Hardening & Tempering

Material Heated:45#40Cr42CrMo65Mn

Bar Diameter Allow: Φ20-110mm

Pipe Diameter Allow: Φ60-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name: Bar quenching tempering

Typical Application:

Forever automatic Bar quenching tempering machine is used for steel quenching tempering such as steel bar, round bar, steel pipe, grinding rod, sucker rod, drilling pipe, drill rod, anchor bolt, steel plate and so on.The bars diameter can be from 20 mm to 110 mm. The pipes diameter can be from 60 mm to 300 mm.

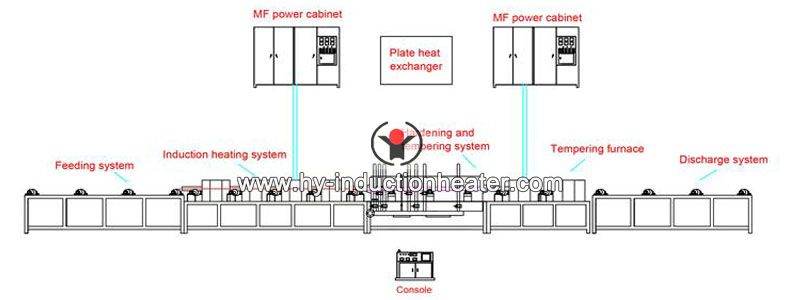

hardening tempering line

Steel quenching processes are used to impart specific mechanical properties to a component in order to render it fit for use.
Tempering is a low temperature (150ºC to 650ºC) heat treatment intended to remove the stresses and brittleness caused by quenching and to develop the required mechanical properties.

Bar quenching tempering with electromagnetic induction heating

  • High efficiency
  • Proven & mature Design
  • Reduced customer start up time
  • Advanced PLC control, power & temperature control
  • Quick release connections for both power & water
  • All the cables and capacitors are well protected for long life performance

Bar quenching tempering production line parts

  • Automatic feeder,transmission device
  • Induction bar heater, which can be made as per work piece shape and length.
  • Quenching box
  • Tempering furnace
  • Automatic discharging
  • IF power supply cabinet
  • Remote console

Successful cases

Steel bar diameter Automatic Control Power Design
Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-v110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

750质量英文版 001_副本

As our induction heater is all customized, the above parameters are only for your reference.

Welcome to contact us at for more detailed price & solution.
