Aluminum heating furnace

Aluminum heating furnace


Application: Forging & Forging

Material Heated:Aluminum & Alloy Aluminum

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name: Aluminum heating furnace

Typical Application:

With mature electromagnetic induction heating and reliable control system, Forever quality Aluminum heating furnace is widely used for aluminum bar heating,aluminum ingot heating before forging, extrusion & shear.

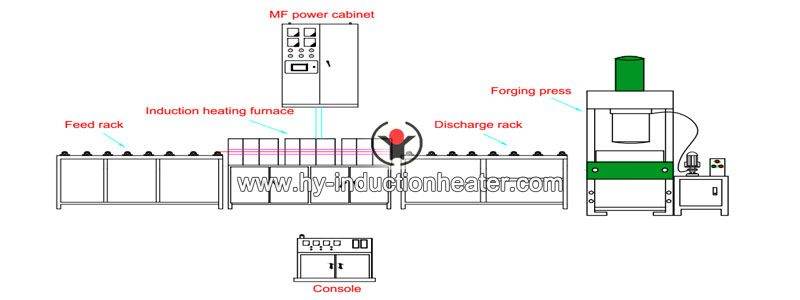

automatic forging production line

Aluminum forging and hot forming are excellent induction heating applications. Industrial forging and hot forming processes involve bending or shaping aluminum bar or ingot after it has been heated to a temperature at which its resistance to deformation is weak. Blocks of non-ferrous materials can also be used.

Aluminum heating furnace with electromagnetic induction heating

  • Much shorter heating times, minimizing scaling and oxidation
  • Easy and accurate temperature temperature control. Parts at temperatures outside specifications can be detected and removed
  • No time lost waiting for the furnace to ramp up to the required temperature
  • Automated induction heating machines require minimal manual labor
  • Heat can be directed to one specific point, which is highly important for parts with only one forming area.
  • Greater thermal efficiency – heat is generated in the part itself and does not need to be heated in a large chamber.
  • Better working conditions. The only heat present in the air is that of the parts themselves. The working conditions are much more pleasant than with a fuel furnace.

Our service for Aluminum heating furnace

  • One sales person and one technician will serve you after you buy our aluminum alloy forging furnace.
  • Experienced engineer will go to your plant to help you to install & debug the induction forging furnace
  • 12 months quality guarantee provided.
  • Free spare parts along with the induction heating equipment provided
  • Any problems during using our induction forging furnace, we will help you to solve.

Successful cases

Bar Diameter Bar Length Heating Temp. Power
Ø 16 mm 300mm 950℃ 250KW/4000Hz
Ø 31-80 mm 70-480mm  1250℃ 500KW/2500Hz
Ø 120 mm 1500mm  1250℃ 2000KW/1000HZ

As our induction heater is all customized, the above parameters are only for your reference. Please send us inquiry to get price and detailed solution for aluminum alloy forging with stainless steel size, heating temperature & production capacity per hour. 750质量英文版 001_副本customercompany
