Steel ball production line

Steel ball production line

Features:

Power 100KW-8000KW
Frequency 500Hz-8000Hz
Heating Diameter Ø16-150MM
Automatic Operation Siemens PLC

Product Detail

Application Video

Product Tags

Product Name: Steel ball production line

Forever steel ball production line includes steel ball hot rolling and steel ball forging process.

In 2008,we manufactured the first bar continuous heating production line used for steel ball rolling in China and the equipment is running very well in customer’s factory.The energy saving effect is obvious.

In 2015,we finished 125mm steel ball heating continuous rolling production line.The medium frequency heating power is 5500KW,the output is 16 tons per hour. We adopt PLC automatic control for large power equipment in recent years,which reduce labor cost and improve working efficiency

Steel ball hot rolling production line: Bar heating–skew rolling mill–quenching–tempering–Cooling–packing

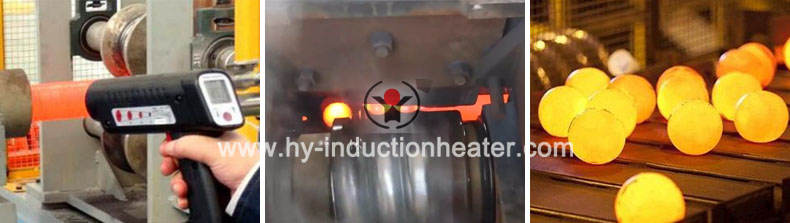

grinding steel ball produciton

Steel ball forging production line:Bar heating–forge forming-quenching–tempering–Cooling–packing

steel ball forging machine

Main parts for Steel ball production line

1. Storage rack and automatic transmission device.

2. Induction heating furnace and temperature control device

3. Skew rolling mill or forge machine

4. Hoisting, conveying and cooling device of steel ball

5. Isothermal quenching device

6. Car-type or on-line mesh-belt tempering furnace

7. Automatic control system for quenching temperature, water temperature discharging after quenching & tempering temperature

cases

Steel ball diameter

Unit weightg

Production capacityPCS/Minute

Production capacityKG/H

Ø25mm

72

100

432

Ø35mm

197

80

945

Ø30mm

125

100

750

Ø40mm

296

80

1420

Ø50mm

578

58

2011

Ø50mm

578

50

1734

Ø60mm

999

50

2997

Ø70mm

1586

30

2854

Ø80mm

2367

20

2840

Ø80mm

2.367

60

8521

Ø100mm

4.14

10

2484

Ø125mm

7.18

10

4308
