Steel ball grinding machine

Steel ball grinding machine

Features:

Power 100KW-8000KW
Frequency 500Hz-8000Hz
Heating Diameter Ø16-150MM
Automatic Operation Siemens PLC Control

Product Detail

Application Video

Product Tags

Product Name:Rolling steel ball production line

Typical Applications:

Forever  is specialized in manufacturing rolling steel ball production line for over 16 years.The user only need to tell us the production capacity,round bar diameter and length,then our engineer will give you the most suitable and cost-effective solutions for rolling steel ball.

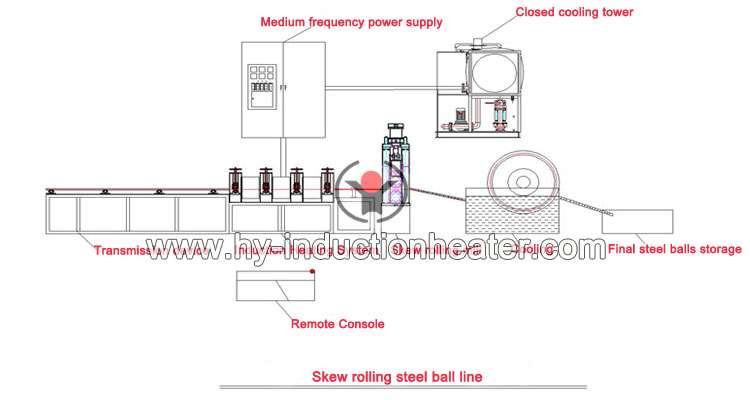

Steel ball production line drawing

http://www.hy-inductionheater.com/products/rolling-steel-ball-production-line.html

Induction heating furnace part

http://www.hy-inductionheater.com/products/rolling-steel-ball-production-line.html

Ø 60-80mm Rolling steel ball production line parameters

● Work piece material:Carbon steel,alloy steel

● Diameter and length of steel bar:Ø60×6000mm,Ø70×6000mm,Ø80×6000mm

● Heating temperature: 980℃-1050℃

● Designed two sets of furnaces:one furnace is for Ø60 and Ø70 steel bar;another furnace is for Ø80 steel bar.

● Heating power:3000KW;Frequency:1000Hz

● Fully automatic for the whole processing cycle

Ø 60-80mm Rolling steel ball production line solutions

Steel Bar Diameter

Length

Production Efficiency(t)

Practical Electric Furnace Power(KW

Ø60

6m

5.80T/H

2000

Ø70

6m

7.00T/H

2400

Ø80

6m

8.00T/H

2700

Here we take Ø 60-80mm Rolling steel ball production line as the example, and our company can make Ø 16-150mm Rolling steel ball production line.

If you are interested in our hot rolled steel ball production line, please send us specific inquiry at sales@foreverfurnace.com.

For your reference,please visit our website: http://www.hy-inductionheater.com/hot-rolled-steel-ball
