Steel ball hot rolling production line

Steel ball hot rolling production line

Features:

Manufacturing Process:Hot rolling

Material Heated:65MN  60MN  70Cr2  B2  B3  40cr  45#

Steel Ball Diameter: Φ20-150mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name: Steel ball hot rolling production line

Typical Applications:

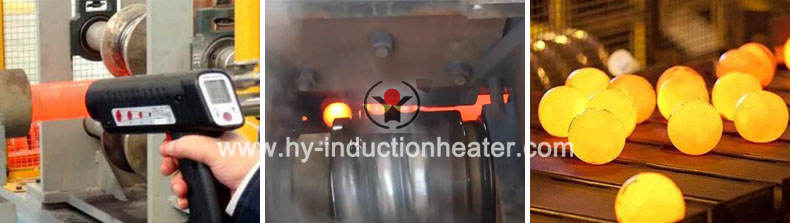

Hot rolled steel ball is a new rolling technology which is a breakthrough in grinding steel ball production. At present, hot rolled steel ball is replacing casting steel ball gradually.Hot rolled steel ball has all the advantages of steel and will become high quality grinding steel ball after heat treatment.

http://www.hy-inductionheater.com/products/steel-ball-grinding-machine.html

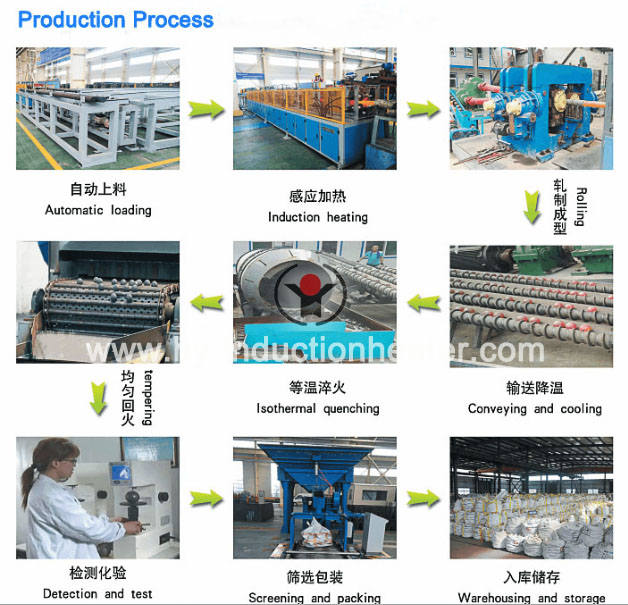

Composition for steel ball hot rolling production line

1. Storage rack and automatic transmission device.

2. Induction heating furnace and temperature control device

3. Skew rolling machine of steel ball

4. Hoisting, conveying and cooling device of steel ball

5. Isothermal quenching device

6. Car-type or on-line mesh-belt tempering furnace

7. Automatic control system for quenching temperature, water temperature discharging after quenching & tempering temperature

steel ball  hot rolling

Steel ball hot rolling production line has the following features:

1. Automatic loading control, improve automation degree and reduce labour intensity;

2. Using induction heating meed has good features of environmental protection ,free contamination, temperature uniformity & high production efficiency;

3. Cast steel semi-closed rack is applied in rolling mill to possess good stand stiffness and free from deformation;

4. Rolling mill is provided with electric lateral pressure adjusting device, simple adjustment and easy to use.

5. Automatic control of steel ball heat treatment quenching and tempering temperature to ensure quenching and tempering quality;

6. The produced steel ball has fine appearance, high hardness and low breakage rate.

cases

Steel ball diameter

Unit weight(g)

Production capacity(PCS/Minute)

Production capacity(KG/H)

Ø25mm

72

100

432

Ø35mm

197

80

945

Ø30mm

125

100

750

Ø40mm

296

80

1420

Ø50mm

578

58

2011

Ø50mm

578

50

1734

Ø60mm

999

50

2997

Ø70mm

1586

30

2854

Ø80mm

2367

20

2840

Ø80mm

2.367

60

8521

Ø100mm

4.14

10

2484

Ø125mm

7.18

10

4308

750质量英文版 001_副本http://www.hy-inductionheater.com/products/long-bar-hardening-and-tempering-production-line.htmlcustomercompany

Engaged in manufacturing hot rolled steel ball machine for 12 years, we can help you to choose effective equipment at reasonable prices.

Welcome to contact us at tom@foreverfurnace.com for customized detailed price & solution.
