Skew rolling steel ball line

Skew rolling steel ball line


Power      100KW-8000KW
Frequency 500Hz-8000Hz
Heating Diameter Ø16-150MM
Automatic Operation Siemens PLC

Product Detail

Application Video

Product Tags

Product NameSkew rolling steel ball line

Typical application:

Forever skew rolling steel ball line is used for hot rolling various diameters of steel balls with high efficiency and simple operation, which includes skew rolling steel ball mill,roller, steel ball heat treatment device, infrared thermometer and water cooling tower.

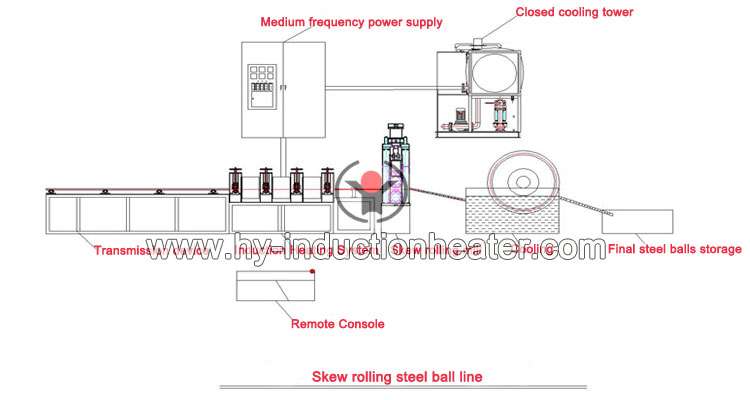

Complete skew rolling steel ball line

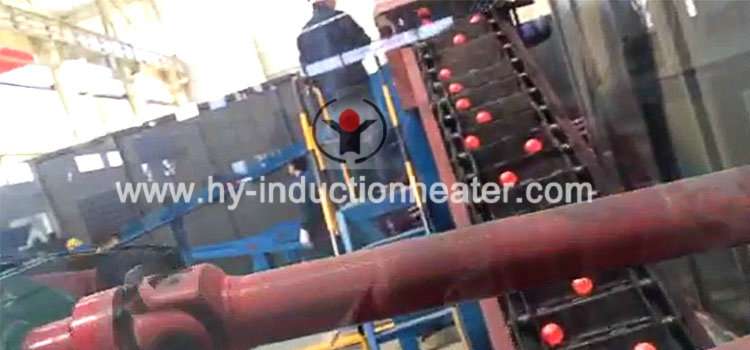

Hot rolling steel balls process

Fully automatic skew rolling steel ball line

 Power supply system: Double rectifier twelve pulse KGPS2500KW/1000Hz intelligent IF power supply.

● Transmission roller and pressure roller: Rollers between the furnace are made of 304 non-magnetic stainless steel and water-cooled, and other parts of the roller is made of 45 steel and the surface is hardened.

● Inductor design: Variable pitch, design of preheating stage, heating-up stage and constant stage, which is more energy-efficient.

● Infrared temperature measurement : Setting infrared temperature measurement device at the discharge, so that the steel bar temperature can be controlled in the allowed range before charging into the rolling machine.

● Our factory can equip skew rolling machine group, roller and steel ball quenching system with high quality

▲ Energy transformation : The power consumption is 280-310 KW/H for heating steel to 1000℃.

750质量英文版 001_副本

Forever  hot rolled steel ball production line series: Ø20-Ø50mm Skew rolling steel ball line, Ø60-Ø80mm Skew rolling steel ball line, Ø80-Ø100mm Skew rolling steel ball line, Ø100-Ø120mm Skew rolling steel ball line

Any other induction heat treating system, please send us inquiry!
