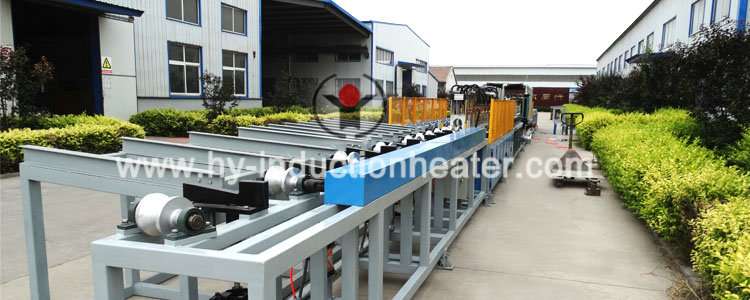

Induction bar heating system
Features:
| Application | Bar heating for forging, rolling, warm forming and extrusion |
| Power | 100KW-8000KW |
| Non standard | Professional customization |
| Temp.control | Infrared thermometer |
Product Detail
Application Video
Product Tags
Forever induction bar heating system is used for heating before metal bar forging, extrusion and bending and also metal bar material hardening and tempering, annealing, tempering and other heat treatment. With our induction bar heating system, the bar material can be heated to the required temperature up to the core.
Product Name: Induction bar heating system
Application:Heating before rolling, forging or heat treatment
Loading way: Cylinder push, automatic turning device
Cooling way: Circulation water cooling
The characteristics of induction bar heating system:
● The system has achieved automatic loading, automatic feeding, automatic heating and automatic discharging.
● After heating the bars, there is no phenomenon of deformation, crack. There is very small temperature difference from the surface to the core, so it’s easy for rolling to roll into other products. If the temperature difference from the core to the surface is big, then it will reduce the roller life and do some damage to the rolling mill.
● Compared with gas furnace or fuel furnace, our induction bar heating furnace system does’t need preheating time and user can arrange the production very flexibly.
● For different sizes of bars, we will design different sizes of induction heaters, which is very easy to replace them as per production plan.
● IGBT air cooling power supply design can reduce the failure rate caused by water scale, and user only need to prepare cooling machine for induction heating coils.
Induction bar heating system advantages
● Fast heating speed, little oxidation and decarbonization, low energy consumption, no pollution.
● Fully automation, available for unmanned automatic operation
● Uniform heating, high precision temperature control.
Induction bar heating system data reference
| OD(mm) | Power(kw) | Frequency(khz) | Temperature(℃) | Heating efficiency(kg/h) | Power Consumption(kw/h) |
| 5-12 | 50 | 10-40 | 200-1250 | 138 | ＜360 |
| 5-30 | 100 | 4-40 | 200-1250 | 278 | ＜360 |
| 12-40 | 160 | 4-20 | 200-1250 | 445 | ＜360 |
| 30-80 | 250 | 1-4 | 200-1250 | 698 | ＜360 |
| 50-100 | 500 | 0.5-2.5 | 200-1250 | 1388 | ＜360 |
| 80-100 | 1000 | 0.5-1 | 200-1250 | 2778 | ＜360 |
| ＞100 | ＞1000 | 0.2-0.5 | 200-1250 | ＞2778 | ＜360 |
Forever strives to improve efficiency, productivity, and quality for our users through constant improvement and continuous innovation. Forever Furnace will bring the best and the most induction heating technology to our induction heat treating equipment.
