Steel bar heat treatment line

Steel bar heat treatment line


Application: Quenching & Tempering

Material Heated:45#,40Cr,42CrMo,65Mn

Diameter range: ø10-120mm

Heating way: Induction heating

Product Detail

Application Video

Product Tags

Steel bar heat treatment line

●  Product Name:Steel bar heat treatment line, steel bar induction heat treatment line
●  Diameter range: 10mm-120mm
●  Medium frequency power: 350KW-1500KW
●  Product highlights: Automatic & energy saving. Components are all import.
                              Before sending the induction heat treatment equipment out of our factory, we will test for our customers.

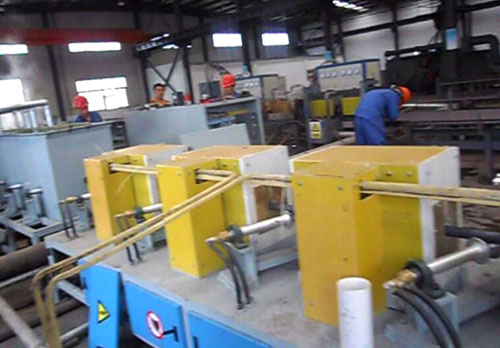

steel bar heeat treatment

Steel bar heat treatment line advantages

1.The transmission system adopts dynamic double pressure roller, having good features of high precision, high toughness, high temperature resistance and strong stability;
2.Closed loop temperature control system adopt two-color infrared thermometer.

Double-color infrared thermometer parameters are as follows:
Thermometer model: Raytek MRISASF
Measuring temperature range: 600-1400°C
Measurement accuracy: Max.measured temperature. of ±0.75%
Repeat accuracy: Max.measured temperature of ±0.3%
Response time: ≤10 milliseconds
Ambient temperature: 0-50°C
Output: 4-20mA
Power: 24VDC, 500mA±20%

3.Independent import frequency converter control, flexible design for speed difference output, subsection control for running speed, high efficiency and energy saving.
4.The whole induction heat treating system running can be finished automatically after you input all the parameters. Reliable, high overload resistance, strong and durable.
5. KGPS induction heating power control, PLC man-machine interface, accurate, energy efficient.

12 pulse power supply
