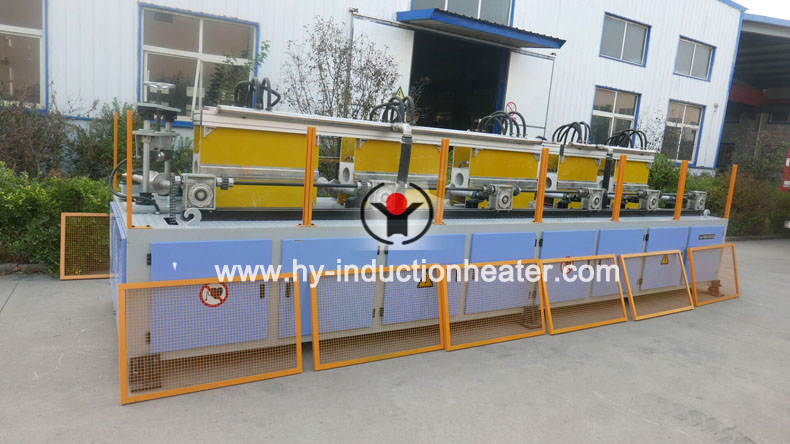

Pipe induction heat treatment machine
Features:
| Material | 20Cr、30Cr、40Cr、35CrMo、42CrMo、40CrNiMoA |
| Convey mode | Roller table |
| Control system | Closed-loop temperature control |
Product Detail
Application Video
Product Tags
Forever has rich experience for the Pipe induction heat treatment machine , such as seamless pipe, stainless pipe, weld pipe and so on. This month we receive a new order of oil casing quenching and tempering line with pipe diameter 50.8-219.08mm. Our pipe induction heat treatment line has advantages of energy saving, reliable performance and good price, welcome to send us inquiry.
Basic information for pipe induction heat treatment machine
| Material | 20Cr、30Cr、40Cr、35CrMo、42CrMo、40CrNiMoA |
| Brand | Forever |
| Convey mode | Roller table |
| Power | 100-8000KW |
| Control system | Closed-loop temperature control |
Working process for pipe induction heat treatment machine
Manually put the pipes on the storage platform, then the system will finish automatic feeding, transportation, water cooling, tempering, cooling, discharging and receiving on the platform controlled by PLC system.
Characteristics of pipe inductoin heat treatment machine: (Compared with gas furnace and resistance furnace heating)
1. As the heat is generated inside the heated workpiece, the temperature of the pipe induction heat treatment furnace will be increased quickly. The surface of the workpiece is less oxidized and decarbonized, and the raw material is saved. The induction heating temperature is more uniform and the temperature difference at the core to surface is small. The application of the temperature control system can achieve precise control of the heating temperature and improve the quality of the pipes and the pipe qualified rate.
2. The pipe has good hardenability and high straightness in quenching. Compared with gas furnace, induction heat treating furnace can be instant start and stop and can reverse if there is mechanical problem. After induction heat treating, no need to use straightening machine for the following process.
3. The pipe induction heat treatment machine adopts PLC automatic control system, all-digital, high-depth adjustable parameters, strict level management system, and one-click restoration function.
4. With pipe induction heat treatment machine, the working environment is good as induction heating method will not produce smoke, gas or noise.
| Diameter | Automatic Control | Power Design |
| Ø18-Ø28 mm(bar) | PLC Control | IGBT200KW Hardening |
| Ø30-Ø70mm( bar) | PLC Control | KGPS350KW Hardening |
| Ø80-Ø110( bar) | PLC Control | KGPS450KW Hardening |
| Ø16-Ø32 mm(rod) | PLC Control | IGBT200KW Hardening |
| Steel bar diameter | Automatic Control | Power Design |
| Ø10-Ø28 mm | IPC Control | KGPS350KW Quenching+KGPS160KW Tempering |
| Ø42-Ø48 mm(Anchor Bolt) | PLC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø30-60 mm | IPC Control | IGBT250KW Quenching+IGBT160KW Tempering |
| Ø30-Ø60 mm | PLC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø35-Ø60 mm | IPC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø30-Ø110 mm | IPC Control | KGPS400KW Quenching+KGPS400KW Tempering |
| Ø80-Ø110 mm | PLC Control | KGPS600KW Quenching+KGPS160KW Tempering |
