Steel ball skew rolling mill- Steel ball rolling production line
Features:
Manufacturing Process:Hot rolling
Material Heated:65MN 60MN 70Cr2 B2 B3 40cr 45#
Steel Ball Diameter: Φ20-150mm
Length Allow:Not limited
Product Detail
Application Video
Product Tags
Steel ball skew rolling mill- Steel ball rolling production line
Typical Application:
Skew rolling is a latest technology to make steel balls, which is the technical breakthrough of ball milling manufacturing process, and it is replacement of casting steel ball gradually.
Composition for steel ball production line to make steel ball
● Storage rack and automatic transmission device.
● Induction heating furnace and temperature control device
● Skew rolling machine of steel ball
● Hoisting, conveying and cooling device of steel ball
● Isothermal quenching device
● Car-type or on-line mesh-belt tempering furnace
● Automatic control system for quenching temperature, water temperature discharging after quenching & tempering temperature

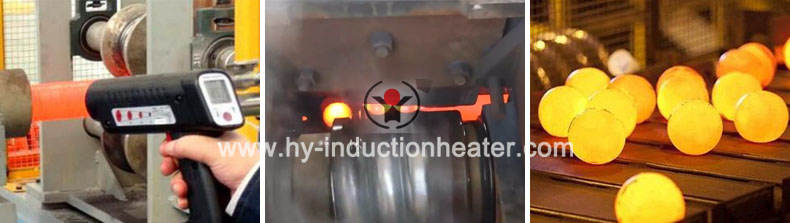

Main production process to make steel balls
Successful cases:
|
Steel ball diameter |
Unit weight（g） |
Production capacity（PCS/Minute） |
Production capacity（KG/H） |
|
Ø25mm |
72 |
100 |
432 |
|
Ø35mm |
197 |
80 |
945 |
|
Ø30mm |
125 |
100 |
750 |
|
Ø40mm |
296 |
80 |
1420 |
|
Ø50mm |
578 |
58 |
2011 |
|
Ø50mm |
578 |
50 |
1734 |
|
Ø60mm |
999 |
50 |
2997 |
|
Ø70mm |
1586 |
30 |
2854 |
|
Ø80mm |
2367 |
20 |
2840 |
|
Ø80mm |
2.367 |
60 |
8521 |
|
Ø100mm |
4.14 |
10 |
2484 |
|
Ø125mm |
7.18 |
10 |
4308 |
Any inquiries about steel ball production line, please send us email at tomforeverfurnace.com for factory price & solution.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
