induction annealing furnace

induction annealing furnace


Application: Annelaing

Material Heated:Carbon Steel ,Alloy Steel & Stainless Steel

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name:induction annealing furnace

Typical Application:


pipe bar induction annealing furnace, which is heating workpiece to a predetermined temperature and slow cooling after holding for a certain period of time (usually with the furnace cooling).

The purpose of annealing is to homogenize the chemical composition, improve the mechanical properties and process performance, eliminate or reduce the internal stress for preparation of heat treatment.

Our IF annealing furnace is using induction heating method for heating steel, which is a accurate, uniform and rapid heating and widely used for carbon steel, stainless steel.

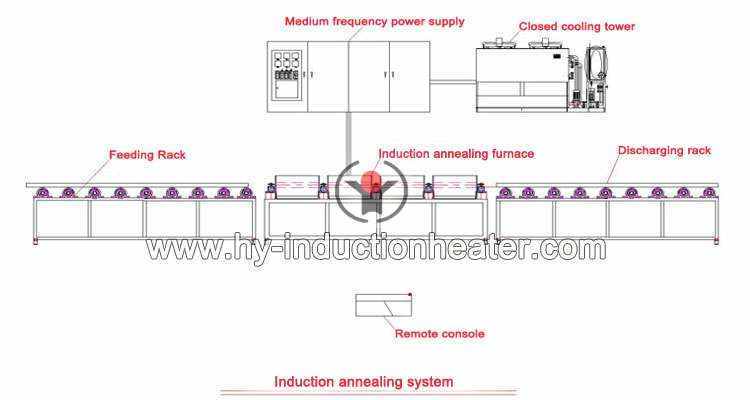

induction annealing system

Features of induction heating equipment :

● Efficient ! Our machine that adopts German Siemens IGBT model can reach a set temperature within two seconds.

● Speed controllable !  You can adjust the machine to acquire the speed you need.

● Safe and reliable !   It is equipped with many safety system. Any mistake can be alerted by the self-protection buttons, over-current, over-voltage, over-hot, water shortage etc.

● Easy to install and operate ! Any unprofessional worker can learn how to use it well within 3 minutes.

● Environmental !  No pollution. It conforms to the requirement of the national environmental protection.

● Economical !  This induction way saves 20%-30% electricity than other ways.

● Longlasting work !  A unique cooling circulation system equipped in the machine ensures long-lasting work.

● Step-less !  Machine power can be adjusted step-less.

● Customized !  Our machine can be changed partially according to your needs.

 ● Temperature controllable ! Not only the temperature of heating but also the time of heat and heat preservation can be set.Thus operator needn’t set the technical numbers again and again.

Successful cases

Bar Diameter Bar Length Heating Temp. Production capacity
Φ36-45mm 1500mm 1125°C ± 25 3T/H
Ø60mm 6000mm 1200℃ 4.4T/H
Ø70mm 6000mm 1200℃ 5.3T/H
Ø80mm 6000mm 1200℃ 6T/H

750质量英文版 001_副本


As our induction heater is all customized, the above parameters are only for your reference.

Welcome to contact us at for Customized price & solution.
