Continuous cast billet induction reheating furnace
Features:
Process: Continuous Casting & Rolling
Application: Increasing Temp. of Billet online
Material Heated:Carbon Steel & Alloy Steel
Product Detail
Application Video
Product Tags
Continuous cast billet reheating furnace
Continuous casting and rolling process: After the billet discharging the continuous casting machine(CDM), the heat will lose, so we need to regain heat for billet rolling. Then our billet reheating furnace can reheat the steel billet from 700-800℃ to 1000-1200℃ to realize online heating.

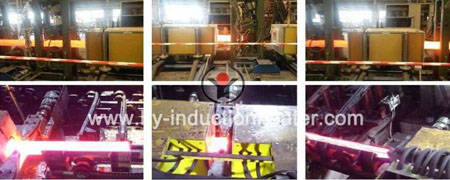

Billet reheating furnace field working
Steel billet induction reheating furnace
● Heating fast and uniform.
● Power saving 10% or above:Less harmonics, high power factor, load output voltage is high, the load coil current is low,small power consumption.
● 100% successful starting.Reliable frequent starting is available.
● Easy installation & commission and simple operation.
● Safe and reliable.Perfect protections for long life performance and very safe for operators. Automatic protections for water temperature,water pressure,phase shortage, overcurrent and undervoltage.
● High reliability:Adopt famous brand components which reduce fault rate and make sure the equipment can run reliably.

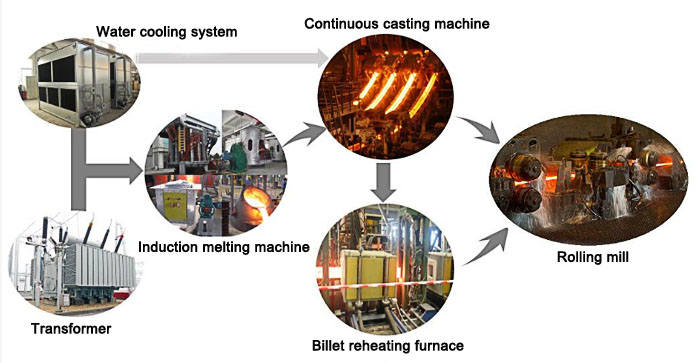

Our billet reheating furnace working principle in the continuous casting and rolling process.
Successful cases:
| Billet size | Billet length | Heating Temp. | Production capacity |
| 60*60mm2 | 3m-4 m | 1000℃-1100℃ | 25T/H |
| 75*75mm2 | 3-6 m | Room Temp.-1100℃ | 25T/H |
| 100*100mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 120*120mm2 | 750℃-1100℃ | 30T/H | |
| 120*120mm2 | 11.5-12.5m | 950℃-1150℃ | 90T/H |
| 125*125mm2 | 6 m | Room Temp.-1200℃ | 8T/H |
| 125*125mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 130*130mm2 | 6 m | 950℃-1150℃ | 50T/H |
| 135*135mm2 | 6 m | 950℃-1150℃ | 100T/H |
| 150*150mm2 | 11.5-12.5m | 950℃-1150℃ | 70T/H |
As our billet induction heater is exactly designed as per customer’s requirement, every induction billet heating furnace is different. Please tell us your requirement, we will be glad to help you to choose quality induction billet heating furnace at reasonable prices.
Welcome to contact us at tom@foreverfurnace.com for more detailed price & solution.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
