Tube annealing

Tube annealing


Application: Tube, Plate, sheet, slab,billet

Process:Induction annealing

Cooling way:Water cooling

Product Detail

Application Video

Product Tags

Tube annealing, Tube induction annealing line working process

Crane liftingStorage platformAutomatic feeding & turningRoller tableInduction heatingFinish annealingDischargingAutomtaic unloading deviceStorage platform

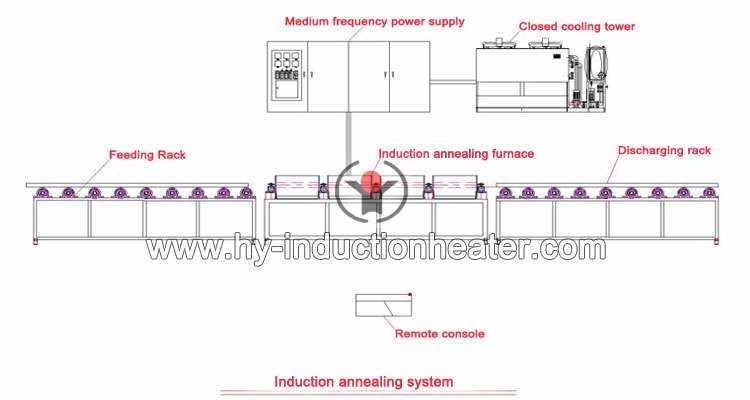

tube annealing furnace

Technical parameters for tube annealing

●    Material: carbon steel or alloy steel
●    Tube diameter: – 312 mm.
●    Wall thickness: 12 mm.
●    Tube length: 8 m-10 m.
●    Heating efficiency: 1388 kg/ hours
●    Heating temperature: 900 -1000 C

Tube annealing line configuration

Name Quantity
Mediate frequency power supply 1 set
Furnace frame including capacitor 1 set
Induction heater 1 set
Connection cable 1 set
Storage platform with 8 meters turning device 1 set
Automatic rotary feeding mechanism 1 set
Control system 1 set
PLC console 1 set
Infrared thermometer 1 set
Discharging system 1 set


● Stainless steel            ● Plate
● Steel bar,round bars                          ● Spring
● Octagonal hammer                        ● Seamless pipe,thick-walled pipe
● Casing, tubing                      ● Steel wire,steel strand
● Rebar, deformed bars                                 ● Bearing steel
● Rod                          ● Gear,roller

750质量英文版 001_副本

If you are interested in our  induction heating equipment, Welcome to contact us at  or call us


Overseas manager: Tom Wang

Phone: 0086-13303078975(whatsapp, wechat,line)

Specialist of  bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
