Steel billet induction reheating furnace
|Application||Steel billet reheating, online heating, rolling,forging
Product Name: Steel billet induction reheating furnace
Over more than 12 years development,Forever has been the leading manufacturer of steel billet induction reheating furnace in China,Our steel billet induction reheating furnace has got good reputations from the end users.The Steel billet induction reheating furnace can be used for steel bar forging reheating,steel billet reheating,billet heating up,online heating.

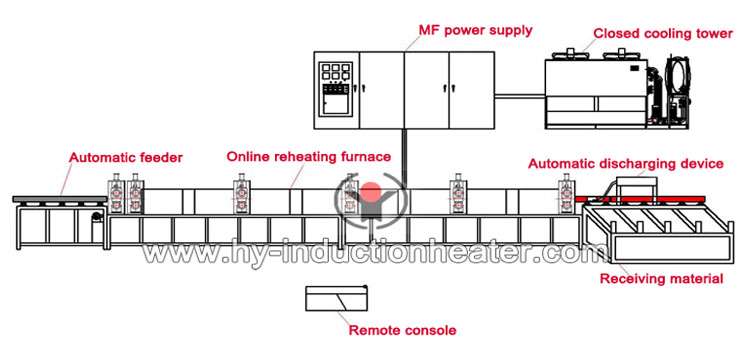

Billet online reheating system layout
Technical Parameters for Steel billet induction reheating furnace
● Ability for steel billet heating up:Heating the complete billet to 1100℃.
● Ability to be uniform temperature:Make sure that billet temperature uniformity is better is than natural status before heating after billet going through the induction heating furnace.
● Medium frequency power supply
A.Raising the temperature from 800℃ to 1100℃ within one minute.The required power is 5700 KW as per the standard.
B.The electricity consumption per ton of billet in theory is 38 degree(for example,the electricity consumption per ton of billet is 25 degree if you want to raise 200℃)
C.We separate the power supply of 5700KW into two sets of equipment in order to ensure the reliability of heating furnace continuous working. Each one is 5700 KW and one use one standby.
D.Medium frequency power supply parameters reference.
|MASTER POWER OF POWER SUPPLY||5700 KW|
|SIGNAL POWER||5700 KW||ONE USE ONE STANDBY|
|INCOMING LINE VOLTAGE||1000KW|
|RECTIFIER PULSE||12 PULSE|
|MEDIUM FREQUENCY VOLTAGE||1600 V|
|MEDIUM FREQUENCY FREQUENCY||1200 HZ|
If you are interested in our billet induction heat treating equipment, please feel free to contact us!
Welcome to visit our website 【 http://www.hy-inductionheater.com/billet-induction-heating-equipment 】
Overseas manager: Tom Wang
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
