Induction surface hardening

Induction surface hardening

Features:

Application: Hardening & Quenching

Material Heated:45#,40Cr,42CrMo,65Mn

Bar Diameter Allow: Φ20-110mm

Pipe Diameter Allow: Φ60-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Induction surface hardening furnace

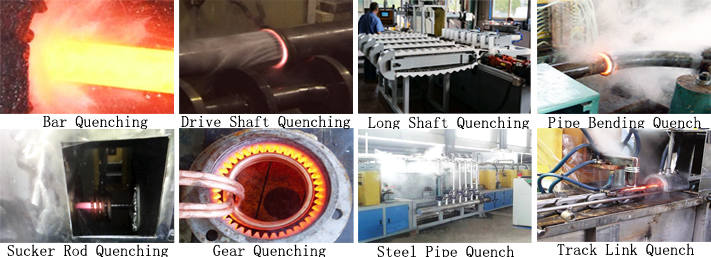

Induction surface hardening funrace is used to increase hardness and mechanical strength of steel in a specific area. Steel material will be heated to a temperature slightly higher than the upper critical (between 850-900ºC) and then cooled very quickly in a quenching medium such as oil, air, water etc. Forever induction surface hardening furnace can be sued the following workpiece: Round bar, long shaft, drive shaft, sucker rod, track link, gear, grinding rod, torsion bar, tubing, drill pipe.

induction surface hardening machine

Induction surface hardening furnace features

     ● Main machine frame is made of national standard polished material, and stainless steel and alloy materials.

     ● Servo system:Working parts adopt with Japan Panasonic servomotor, rotating parts adopt Japan Panasonic adjustable motor, to protect the precision and the usage life of the machine.

     ● Pneumatic part: all parts are made in Taiwan.

     ● Electrical control system: PLC control touch screen adopt with Panasonic products, Japan Omron relay, France Schneider operation knob with stable quality.

     ● Induction power: IGBT ultra-high frequency induction heating power one set for hardening (100-500KHZ); IGBT high frequency induction heating power one set for tempering (30-80KHZ)

     ●  Industrial water cooling system: water cooling chiller one set: 5HP.

      cases

      Steel bar diameter Automatic Control Power Design
      Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
      Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
      Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
      Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
      Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
      Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
      Ø80-v110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
      Pipe diameter Automatic control Power design
      Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
      Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
      Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
      Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
      Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
      Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

      As our induction heater is all customized, the above parameters are only for your reference.
