Shaft induction hardening equipment

Shaft induction hardening equipment


Application          Shaft surface hardening & through hardening
Power  100 KW-8000 KW
Non standard Professional customization

Product Detail

Application Video

Product Tags

Product Name: Shaft induction hardening equipment

Typical Application:

Forever shaft induction hardening equipment is widely used for surface hardening and through hardening of shaft, long shaft, axle shaft, drive shaft, drill pipe, drill rod, steel pipe and tube. Forever  shaft induction hardening equipment has good features of uniform hardening, no need straightening after hardening and very small deformation.

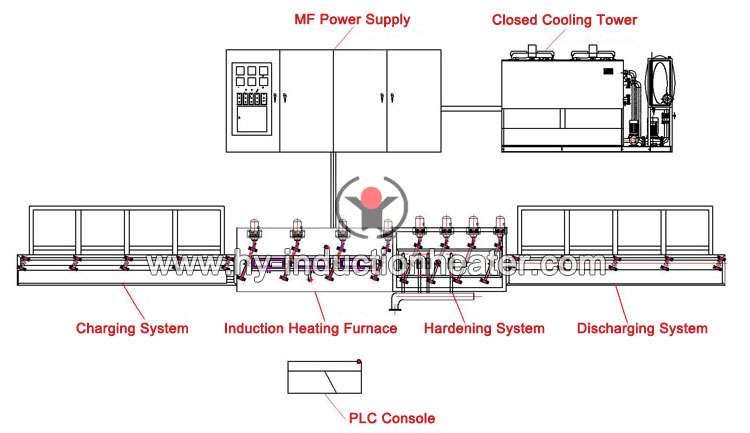

Equipment  Configuration:

Processing technology & technical parameters

● Steel material:  Low alloy steel

● Shaft specification:Ø16,Ø25mm×(30004000)mm

● Hardening temperature: 900℃(The specific heating temperature can be adjusted according to the hardness requirement).

● Hardening depth:1.12.3mm(or 5%13% from the shaft diameter,hardness after hardening HRC≥60).

● Heating speed:60 pieces per hour for Ø25mm×4000mm; 120 pieces per hour for Ø16mm×4000mm.

● Working process:

Automatic feeding shaft- transmitting shaft-induction heating-spraying- discharging shaft

All the process except for manual crane loading can be finished automatically controlled by PLC. And all the productive process can be recorded automatically.

● In order to make sure the shaft can rotate on the roller and ensure uniform heating and water spraying,we specially design two sets of three roller device to meet shaft rotation rate requirement.

● According to the above requirements,we design 160 KW power and 20000Hz frequency.

● PLC automatic control

Siemens PLC and 10-inch color touch screen.

The above is one of successful cases of IGBT induction hardening equipment for shaft from our factory only for your reference. Please tell us the work piece size and heating efficiency (production capacity), then we will supply you most suitable induction heating equipment and induction heat treating equipment.
