Shaft hardening heat treatment furnace

Shaft hardening heat treatment furnace

Features:

Application Shaft hardening, tempering, quenching and tempering
Power 100 KW-10000 KW
Non standard
Professional Customization

Product Detail

Application Video

Product Tags

http://www.hy-inductionheater.com/products/induction-quenching-line.html

Product NameShaft hardening heat treatment furnace

Typical application:

Forever Forever provides shaft hardening heat treatment furnace is used for various sizes of shaft hardening heat treatment with advanced induction heating technology, reliable performance and thoughtful after-sales service team.Any request about shaft induction heat treating, please send us email.

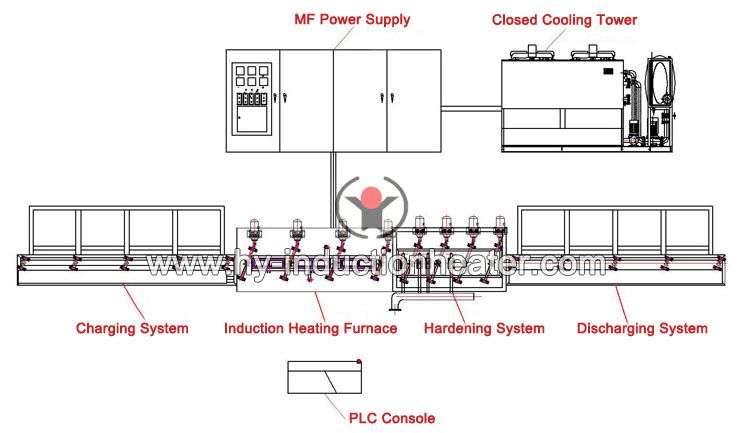

Induction hardening system drawing:

http://www.hy-inductionheater.com/products/shaft-hardening-heat-treatment-furnace.html

Processing Technology and Technical Parameters of shaft hardening heat treatment furnace

 Heating steel material grade:  Low alloy steel

 Shaft specification:Ø16,Ø25mm×(30004000)mm

 Hardening temperature: 900℃(The specific heating temperature can be adjusted according to the hardness requirement).

 Hardening depth:1.12.3mm(or 5%13% from the shaft diameter,hardness after hardening HRC≥60).

 Heating speed:60 pieces per hour for Ø25mm×4000mm;120 pieces per hour for Ø16mm×4000mm.

● Working process:

Storage rack-automatic turning material- transmitting material-hardening heating- spraying- material receiving

All the process except for manual crane loading can be finished automatically controlled by PLC. And all the productive process can be recorded automatically.

● In order to make sure the shaft can rotate on the roller and ensure uniform heating and water spraying,we specially design two sets of three roller device to meet shaft rotation rate requirement.

 According to the above requirements,we design 160 KW power and 20000Hz frequency for the shaft hardening heat treatment furnace .

 PLC automatic control

Siemens PLC and 10-inch color touch screen

More details or videos about Induction heat treating equipment, please send us inquiry at sales@foreverfurnace.com.
