Billet heating furnace

Billet heating furnace

Features:

Application Billet heating,forging, rolling, reheating
Power 100KW-10000KW
Non-standard Professional Customization

Product Detail

Application Video

Product Tags

http://www.hy-inductionheater.com/billet-induction-heating-equipment

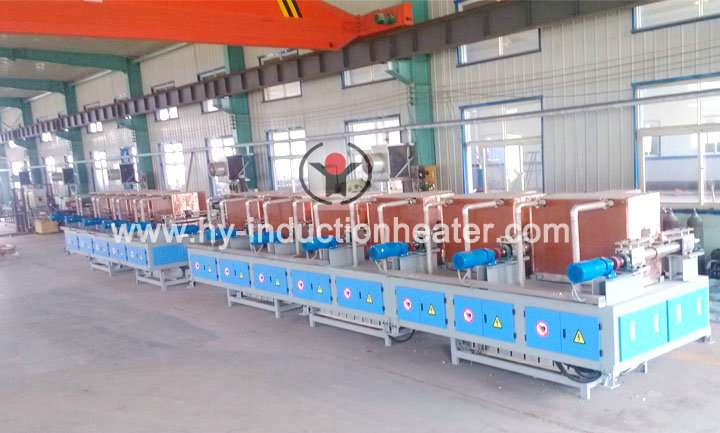

Billet heating furnace

Forever billet heating furnace has features of fast & uniform heating, less oxidation, accurate temperature control and powerful after-sales service. Forever can not only supply top quality billet heating furnace, but also our engineer team will give you the most energy saving proposals.

● Material: Carbon steel, Alloy steel, Aluminum, Copper, Magnesium alloy, Titanium alloy
● Line speed: Depending on your production requirement
● Temperature control system: Automatic control & adjust for heating Temp.
● Whole system control system:Siemens PLC control
● Power required: 100-8000KW

http://www.hy-inductionheater.com/products/billet-induction-heating.html
Billet heating furnace composition

● Medium frequency power supply
● Induction heater
● Capacitor cabinet
● Connection cables
● Remote console
● Frequency control feeding device
● Fast discharging device

http://www.hy-inductionheater.com/products/induction-heating-furnace-for-sale.html

 Billet induction heating furnace optional machine:

● Transformer
● Closed cooling machine

Billet heating furnace application

● Cold billet heating for forging or rolling: the material can be steel, copper, aluminum, alloy carbon steel. The finished products can be various kinds of auto parts, mining parts like steel balls.
● Inline billet induction heating line: suitable for continuous casting and rolling process or working with gas heating furnace.
●Billet preheating before processing the workpiece.

cases

Bar Diameter Bar Length Heating Temp. Production capacity
Φ36-45mm 1500mm 1125°C ± 25 3T/H
Ø60mm 6000mm 1200℃ 4.4T/H
Ø70mm 6000mm 1200℃ 5.3T/H
Ø80mm 6000mm 1200℃ 6T/H
Billet size Billet length Heating Temp. Production capacity
60*60mm2 3m-4 m 1000℃-1100℃ 25T/H
75*75mm2 3-6 m Room Temp.-1100℃ 25T/H
100*100mm2 2 m 750℃-1000℃ 7T/H
120*120mm2   750℃-1100℃ 30T/H
120*120mm2 11.5-12.5m 950℃-1150℃ 90T/H
125*125mm2 6  m Room Temp.-1200℃ 8T/H
125*125mm2 2 m 750℃-1000℃ 7T/H
130*130mm2 6 m 950℃-1150℃ 50T/H
135*135mm2 6 m 950℃-1150℃ 100T/H
150*150mm2 11.5-12.5m 950℃-1150℃ 70T/H

http://www.hy-inductionheater.com/products/long-bar-hardening-and-tempering-production-line.html http://www.hy-inductionheater.com/ http://www.hy-inductionheater.com/products/long-bar-hardening-and-tempering-production-line.html

Dear buyer,

Please kindly let us know: he billet material grade? T

he billet dimension? Heating requirement: speed ? time requirement? heating temperature?

These helps us to recommend  you suitable billet heating furnace  power and frequency.
