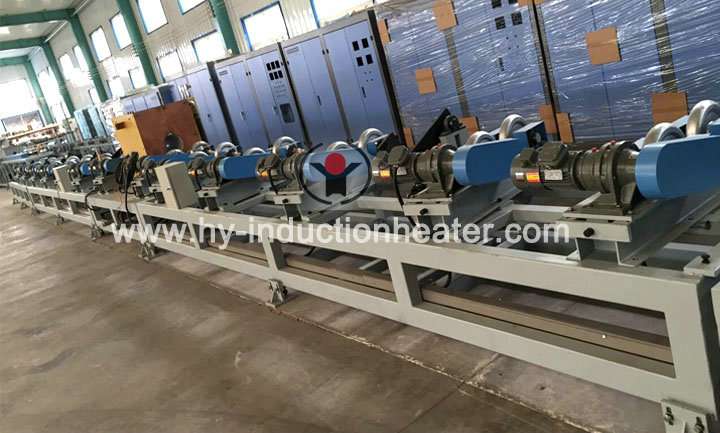

Seamless steel pipe annealing line
|Application||Seamless steel pipe annealing, normalizing, quenching, coating|
|Power||100 KW-10000 KW|
Product Name: Seamless steel pipe annealing line
Forever seamless steel pipe annealing line &seamless steel pipe annealing system provide the highest levels of quality and performance in pipe annealing, coating, heat treatment, and preparation applications.Welcome to visit our factory for seamless steel pipe annealing line negotiation.
Seamless steel pipe annealing line working process:
The user only need to put the steel pipe in the storage rack, then start the power supply, driving and transmission system, then the induction heat treating system will run automatically as per the setting annealing temperature and production efficiency.All the running parameters can be recorded, inquiry and printed.
For different sizes of steel pipes,the user can replace the corresponding inductors( the inductors are quick change structure, user can finish replacement within 15 minutes).
Seamless steel pipe annealing line brief introduction:
The IF power supply control circuit is our unique patented technology(DSP control),the frequency is available for the range of 200-8000 HZ to be suitable for steel pipe large range heating of Ø25～Ø273mm , which has high reliability.This is domestic unique design in China.
Induction heater of seamless steel pipe annealing line
The induction coil adopts high purity copper pipe with special coating material inside and outside coil wall, and the fire resistance temperature can be 1800℃,so the induction heater service life has been extended greatly, reducing the repair cost in future.
The main features of Seamless steel pipe annealing line:
1. The IGBT solid state inverter technology is used for seamless steel pipe annealing line, which can be equipped with application of more pipe sizes.
2. Full load design, available to work continuously for 24 hours.
3.Digital phase-locked technology to achieve automatic frequency tracking.
4.Modular design, simple installation and easy to operate.
5. Adopting resonant frequency conversion technology, the efficiency of seamless steel pipe annealing line is more than 95%, and the efficiency is high.
6.The testing result of seamless pipe can meet user’s requirement after annealing with our machine.
