Induction heating furnace for forging

Induction heating furnace for forging


Application: Forging ,Forming

Material: Carbon steel, Brass,Iron,Alloy steel,Stainless steel,Aluminum

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Induction heating furnace for forging

Forging, hot stamping and extrusion consist of forming a part that has been previously heated to a temperature at which its resistance to deformation is weak. The approximate hot forming temperatures of the most commonly used industrial materials are:

Steel from 1100 to 1250 ºC
Brass 750 ºC
Aluminium 500ºC

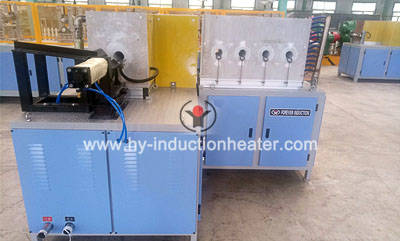

induction furnace for sale

Induction heating advantages:

  • Material and energy saving plus flexibility
  • Greater quality
  • Process control
  • Much shorter heating times
  • Less oxidise and the production of scale is very low
  • Easy and accurate adjustment of the temperature to be applied
  • No time needed for the furnace pre and maintenance heating (for example after or during the weekend when it takes more time)
  • Automation and reduction of the labour required
  • Heat can be directed to one specific point, which is highly important for parts with only one forming area
  • Greater thermal efficiency
  • Better working conditions as the only heat present in the air is that of the parts themselves

    Successful cases

    Bar forging

    Bar Diameter Bar Length Heating Temp. Power
    Ø 16 mm 300mm 950℃ 250KW/4000Hz
    Ø 31-80 mm 70-480mm 1250℃ 500KW/2500Hz
    Ø 120 mm 1500mm 1250℃ 2000KW/1000HZ

    Bar hot rolling

    Bar Diameter Bar Length Heating Temp. Production capacity
    Φ36-45mm 1500mm 1125°C ± 25 3T/H
    Ø60mm 6000mm 1200℃ 4.4T/H
    Ø70mm 6000mm 1200℃ 5.3T/H
    Ø80mm 6000mm 1200℃ 6T/H

    750质量英文版 001_副本

    As our induction heater is all customized, the above parameters are only for your reference.
