Aluminum billet heating furnace

Aluminum billet heating furnace

Features:

Application: Forging & Forging

Material Heated:Aluminum & Alloy Aluminum

Diameter Allow: Φ20-300mm

Heating temperature:500°C



Product Detail

Application Video

Product Tags

Product Name: Aluminum billet heating furnace

Heating method:Induction heating

Power required:100-8000KW

Typical Application:

With energy saving converter and reliable control system, Forever quality Aluminum billet heating furnace is widely used for aluminum and aluminum alloy induction heating before forging, extrusion & shear.

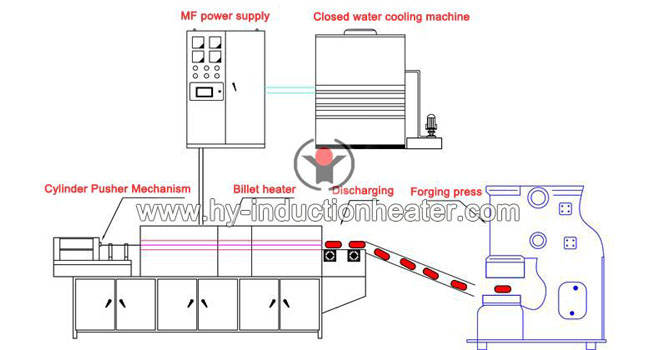

induction heating aluminum for forging

Induction forging has several key advantages over furnace forging. The speed and controllability of induction ensures high throughput. Induction also minimizes oxidation and helps maintain metallurgical integrity. And since induction delivers precise, localized heat, it saves energy. The consistency and repeatability of induction make it ideal for integrating into automated production lines.

Aluminum billet heating furnace advantages

● Much shorter heating times, minimizing scaling and oxidation
● Easy and accurate temperature temperature control. Parts at temperatures outside specifications can be detected and removed
● No time lost waiting for the furnace to ramp up to the required temperature
● Automated induction heating machines require minimal manual labor
● Heat can be directed to one specific point, which is highly important for parts with only one forming area.
● Greater thermal efficiency – heat is generated in the part itself and does not need to be heated in a large chamber.
● Better working conditions. The only heat present in the air is that of the parts themselves. The working conditions are much more pleasant than with a fuel furnace.

http://www.hy-inductionheater.com/products/aluminum-billet-induction-heater.htmlForging heating furnace for aluminum With Full Automatic Feeder System

● M.F Induction Heating Generator (power supply).
● Compensation Capacitor unit.
● Heating coil and accessories
● Full-auto Feeder System
● Stand or working table.

Successful cases

Bar Diameter Bar Length Heating Temp. Power
Ø 16 mm 300mm 950℃ 250KW/4000Hz
Ø 31-80 mm 70-480mm  1250℃ 500KW/2500Hz
Ø 120 mm 1500mm  1250℃ 2000KW/1000HZ

As our billet induction heating furnace is all customized, the above parameters are only for your reference. Please send us inquiry to get price and detailed solution for aluminum forging.
