Billet forging

Billet forging

Features:

Application: Forging & Forging

Material Heated:Carbon Steel & Alloy Steel

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name: Billet forging

Typical Application:

Billet forging heating furnace is used for forge rod,billet of copper and iron.

Forever focus is to lead the market in top quality heating and billet induction heating furnace by providing automatic and innovative systems for long-life features.

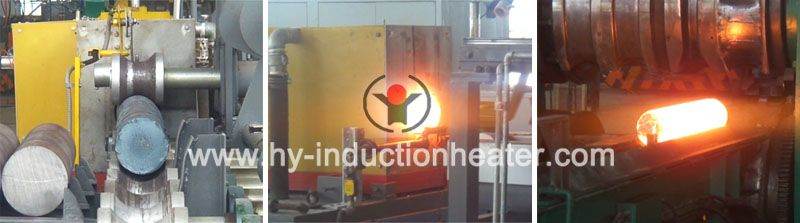

induction forging furnace

Induction heating is the process of heating an electrically conducting object (usually a metal) by electromagnetic induction, through heat generated in the object by eddy currents (also called Foucault currents).

The approximate hot forging temperatures of the most commonly used industrial materials are:

• Steel 1200º C

• Brass 750º C

• Aluminum 500º C

    Successful cases

    Billet size Billet length Heating Temp. Production capacity
    60*60mm2 3m-4 m 1000℃-1100℃ 25T/H
    75*75mm2 3-6 m Room Temp.-1100℃ 25T/H
    100*100mm2 2 m 750℃-1000℃ 7T/H
    120*120mm2   750℃-1100℃ 30T/H
    120*120mm2 11.5-12.5m 950℃-1150℃ 90T/H
    125*125mm2 6  m Room Temp.-1200℃ 8T/H
    125*125mm2 2 m 750℃-1000℃ 7T/H
    130*130mm2 6 m 950℃-1150℃ 50T/H
    135*135mm2 6 m 950℃-1150℃ 100T/H
    150*150mm2 11.5-12.5m 950℃-1150℃ 70T/H

    As our billet induction heater is all customized, the above parameters are only for your reference.

    Welcome to contact us at sales@foreverfurnace.com for more detailed price & solution.
