Induction rod heating furnace
Features:
Application: Forging , Forging , Rolling & Quenching
Material: Steel, Brass, Copper, Aluminium, Titanium
Diameter Allow: Φ20-300mm
Product Detail
Application Video
Product Tags
Product name: induction rod heating furnace
Induction heating is efficient, easily controlled, uses no energy when not heating, and puts the heat where you want it, when you want it. No idle time, no massive refractories to heat, and close coupling enables you to use energy in the best possible way.
Forever is engaged in manufacturing induction rod heating furnace for more than 18 years, especially we are very strong in producing large power equipment and complete production line.Now we have our own technology development team and powerful after-sales service team, which ensure our induction rod heating furnace has reliable performance.
Heating systems for long rod/bar
● Automatic feeding, transport and segregation system
● Used before hot working
● Steel, brass, copper, aluminium, titanium billets
● Tempering continuous measurement and monitoring system
● Fast heating, low scale, high temperature uniformity, high capacity
● Easy exchangeable inductors
● Power 100 KW-8000 KW

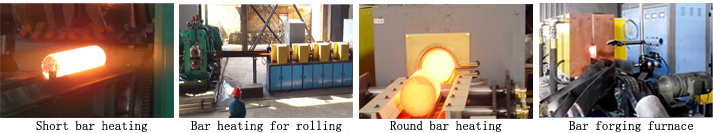

Successful cases
| Bar Diameter | Bar Length | Heating Temp. | Production capacity |
| Φ36-45mm | 1500mm | 1125°C ± 25 | 3T/H |
| Ø60mm | 6000mm | 1200℃ | 4.4T/H |
| Ø70mm | 6000mm | 1200℃ | 5.3T/H |
| Ø80mm | 6000mm | 1200℃ | 6T/H |
| Diameter | Automatic Control | Power Design |
| Ø18-Ø28 mm(Steel bar) | PLC Control | IGBT200KW Quenching |
| Ø30-Ø70mm(Steel bar) | PLC Control | KGPS350KW Quenching |
| Ø80-Ø110(Steel bar) | PLC Control | KGPS450KW Quenching |
| Ø16-Ø32 mm(Sucker rod) | PLC Control | IGBT200KW Quenching |
As our bar induction heating furnace is all customized, the above parameters are only for your reference.
Welcome to contact us at sales@foreverfurnace.com for more detailed price & solution.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
