Induction heater for billet heating

Induction heater for billet heating

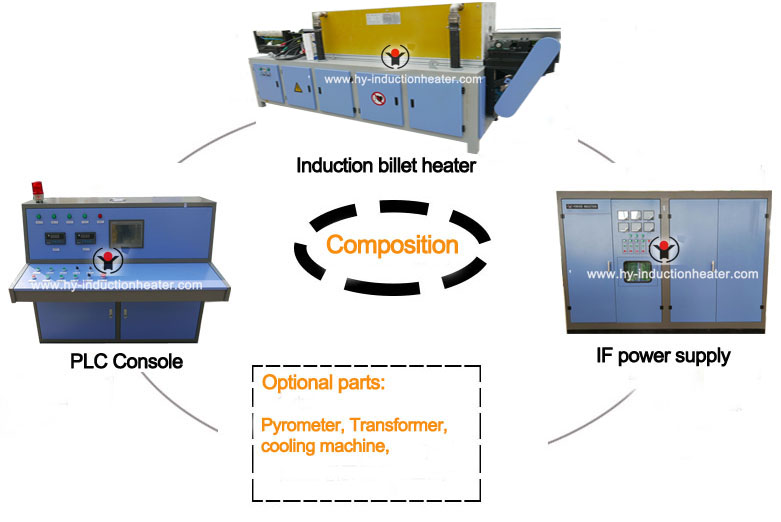

Features:

●  Energy-saving IF power supply
●  Siemens PLC control system
●  Induction heating coils
●  Automatic feeding and discharing system
●  Cooling system for the full line

Product Detail

Application Video

Product Tags

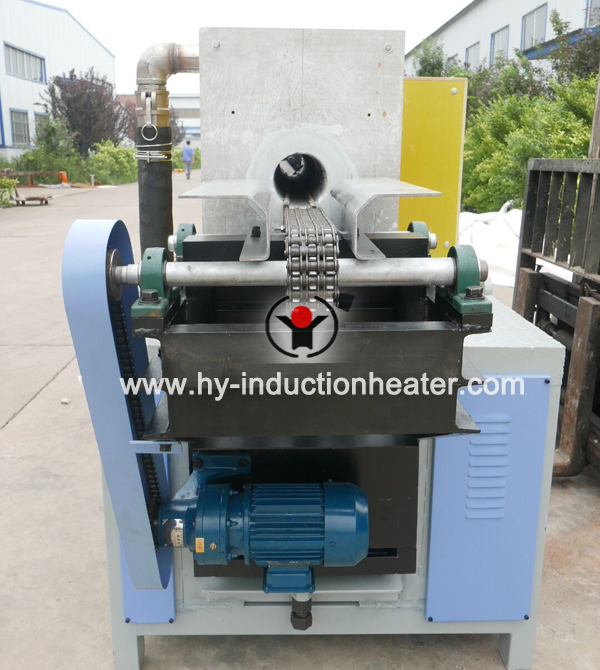

Induction heater for billet heating

Forever induction heater for billet heating adopts induction heating technology for heating the billet including steel billet, aluminum billet or copper billet before forging or rolling.  The billet can be :

●  Round billet
●  Square billet
●  Small billet
●  Large billet

http://www.hy-inductionheater.com/products/induction-heater-for-billet-heating.html

Induction heating furnace has the following advantages:

●  No pollution, gas or dust, good for environment

●  No need preheating time, instant start and stop. More flexible than gas furnace

●  Very less oxidation

●  Uniform heating, which is good for rolling mill. If the billet can not be heated uniformly, the rolling mill will be damaged.



induction heater

Forever advantages for induction heater for billet heating

●  New type power supply, the frequency can be adjustable for wide range of work piece. When replacing the induction heater, the power supply will be automatically adjusted.

●  Accurate meter measurement: Set infrared thermomaeter to monitor heating temperature

●  Superior raw material: The water pipe and rollers are made of 304 stainless steel; The furnace frame is made of high strength aluminum alloy.

●  Famous components: The infrared thermometer is America Raytek, the frequency control motor is German import brand.

●  Full protections for overcurrent, overvoltage, water shortage and so. The system will alarm correspondingly, then the user can stop the system and check.

cases

Bar Diameter Bar Length Heating Temp. Production capacity
Φ36-45mm 1500mm 1125°C ± 25 3T/H
Ø60mm 6000mm 1200℃ 4.4T/H
Ø70mm 6000mm 1200℃ 5.3T/H
Ø80mm 6000mm 1200℃ 6T/H
Billet size Billet length Heating Temp. Production capacity
60*60mm2 3m-4 m 1000℃-1100℃ 25T/H
75*75mm2 3-6 m Room Temp.-1100℃ 25T/H
100*100mm2 2 m 750℃-1000℃ 7T/H
120*120mm2   750℃-1100℃ 30T/H
120*120mm2 11.5-12.5m 950℃-1150℃ 90T/H
125*125mm2 6  m Room Temp.-1200℃ 8T/H
125*125mm2 2 m 750℃-1000℃ 7T/H
130*130mm2 6 m 950℃-1150℃ 50T/H
135*135mm2 6 m 950℃-1150℃ 100T/H
150*150mm2 11.5-12.5m 950℃-1150℃ 70T/H
