Induction billet heating furnace

Induction billet heating furnace

Features:

Application         Rolling billet,forging billet,heating billet
Power  100KW-8000KW
Non standard Professional customization
Temp.control Infrared thermometer

Product Detail

Application Video

Product Tags

http://www.hy-inductionheater.com/billet-induction-heating-equipment

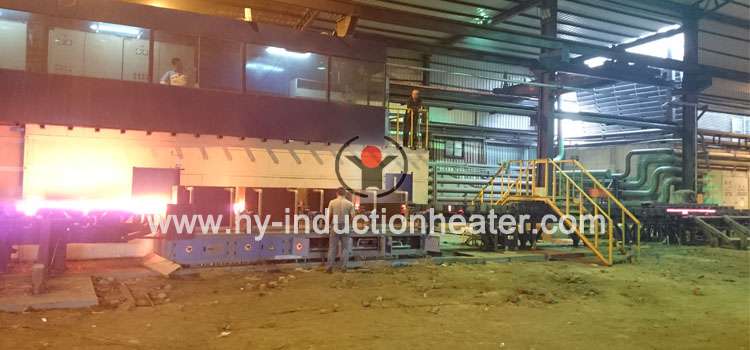

Induction billet heating furnace is designed and produced by Forever Factory providing mature induction heating technology and good after-sales service. Forever induction billet heating furnace includes induction billet heater, medium frequency power supply,closed cooling tower,console.Our induction billet heating furnace is especially suitable for heating large billet or bars like 120*120  mm² ,130*130 mm² ,135*135 mm² ,150*150 mm² and so on.

Product Name: Induction billet heating furnace

Advantages: Uniform heating, small temperature difference, more every saving

Application: Square or round billet heating before rolling

Power designed: As per user’s capacity requirement

Process available: Continuous casting and rolling

                                 Reheating after gas furnace

                                 Cold billet heating

induction billet heating equipment

Properties of Induction billet heating furnace

● High efficiency, precious induction heating.

● Proven and mature design

● No preheating time,100% successful start rate.

● Automatically store technical parameters,allow for inquiry,print.

● Inline increasing the temperature of billet from 700-800℃ to 1000-1200℃.

http://www.hy-inductionheater.com/products/billet-induction-heating.html

Service commitment for Induction billet heating furnace

● Once you buy our billet induction heating equipment, we will arrange one sales person and one technician to serve you.

● We will send  experienced engineer  to your factory to install and adjust the equipment.At the same them,we will give technical training about how to operate and maintain steel billet induction heating furnace until user can master it.

● Forever provides 12 months warranty period and long term technical support and spare parts service.

● Forever will provide a list of spare parts free of charge.

● Forever will call our customers to track the running status of steel billet induction heating furnace every 15 days.

● If the equipment need to be repaired in customer’s factory,we will send technician to solve it.

Related product:  Induction heating for bars rolling        Induction heating furnace for billet rolling

project cases

Billet size Billet length Heating Temp. Production capacity
60*60mm2 3m-4 m 1000℃-1100℃  25T/H
75*75mm2 3-6 m Room Temp.-1100℃  25T/H
100*100mm2 2 m 750℃-1000℃  7T/H
120*120mm2   750℃-1100℃  30T/H
120*120mm2 11.5-12.5m 950℃-1150℃  90T/H
125*125mm2 6  m Room Temp.-1200℃  8T/H
125*125mm2 2 m 750℃-1000℃  7T/H
130*130mm2 6 m 950℃-1150℃  50T/H
135*135mm2 6 m 950℃-1150℃  100T/H
150*150mm2 11.5-12.5m 950℃-1150℃  70T/H
