Induction bar heating

Induction bar heating

Features:

Application: Forging & Rolling

Material Heated: Carbon Steel & Alloy Steel

Diameter Allow: Φ20-150mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name: Induction bar heating equipment

Typical Application:

With new type power supply & self-developed control system, Forever induction bar heating equipment is used for steel bar, copper bar, brass bar, aluminum bar heating or heat treating.Induction heating is efficient, easily controlled, uses no energy when not heating, and puts the heat where you want it, when you want it. No idle time, no massive refractories to heat, and close coupling enables you to use energy in the best possible way.

Forever induction bar heating equipment features

● Bar diameter: ø20-300mm
● Bar material: Steel, aluminum, copper, magnesium alloy, titanium alloy
● Power needed: As per your production capacity

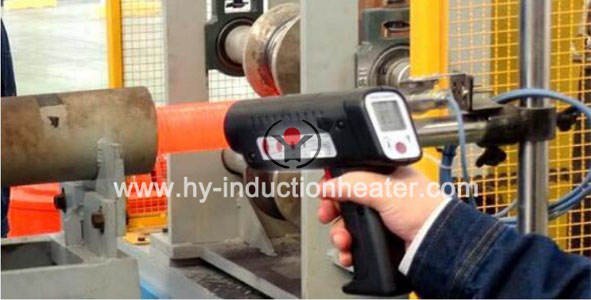

bars induction heating

Induction bar heating equipment features

  • Efficient and quick heating
  • Accurate, repeatable heating
  • Safe heating as there is no flame
  • Equipped with infrared pyrometer and automatic feeder
  • New type power supply, saving power

NEW TYPE POWER SUPPLY for induction bar heating equipment

      Power saving 10% -15%:No harmonics, high power factor, load output voltage is high, the load coil current is low,small power consumption.

     ● Using special transformer for electric furnace.

     ● 100% successful starting.Reliable frequent starting is available.

     ● The furnace has high reliability: This product uses the latest DSP control technology, with reasonable structure, easy commissioning & reliable     performance, which has automatic protection functions including water temperature, water pressure, phase shortage, over-current, under-voltage to ensure The product is running in stable and reliable condition.

    ● Adopt famous brand components which reduce fault rate and make sure the equipment can run reliably, thereby reducing the shutdown probability caused by failure.

    ● Advanced technology & Easy maintenance: Having simple structure,perfect protection for control circuit & the most advanced touch screen control, our power supply can show complete failure and find the error.It adopts DSP control technology, which has a high processing speed, which ensures the efficient and orderly operation of the device functions. real-time computing function and real-time simulation and simulation capability.

More adaptable for load: New type IF induction power supply has self-adaptive function with angle adjustment. No need to adjust power supply while replacing inductor, and the equipment can automatically run in the best condition.cases

Bar Diameter Bar Length Heating Temp. Production capacity
Φ36-45mm 1500mm 1125°C ± 25 3T/H
Ø60mm 6000mm 1200℃ 4.4T/H
Ø70mm 6000mm 1200℃ 5.3T/H
Ø80mm 6000mm 1200℃ 6T/H
Diameter Automatic Control Power Design
Ø18-Ø28 mm(Steel bar) PLC Control IGBT200KW Quenching
Ø30-Ø70mm(Steel bar) PLC Control KGPS350KW Quenching
Ø80-Ø110(Steel bar) PLC Control KGPS450KW Quenching
Ø16-Ø32 mm(Sucker rod) PLC Control IGBT200KW Quenching
