Grinding ball hot rolling heating furnace

Grinding ball hot rolling heating furnace

Features:

Manufacturing Process:Hot rolling

Material Heated:65MN  60MN  70Cr2  B2  B3  40cr  45#

Steel Ball Diameter: Φ20-150mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Product Name: Grinding ball hot rolling mill

Typical Application:

Hot rolled steel  grinding ball is a latest grinding steel ball rolling technology, it is the technical breakthrough of ball milling manufacturing process, and it is replacement of casting steel ball gradually. Grinding ball hot rolling mill  is a high production rate steel ball making machine

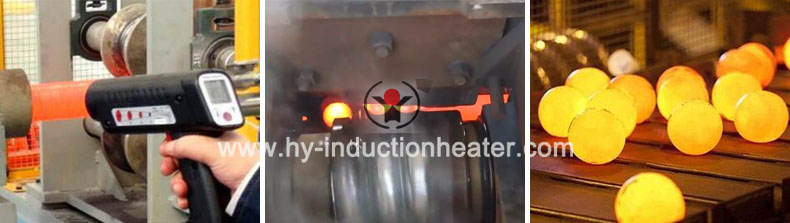

automatic steel ball hot rolling

Advantages of grinding ball hot rolling mill

  • Main body is with good rigidity.
  • Adjust is easy.
  • Locking is solid, high stability.
  • Easy to change guide plate.
  • Production is compete automation, high production efficiency,large output.
  • Low energy consumption, no pollution.

Advantages of hot rolled steel balls

  • Good surface and roundness
  • Equilibrium Internal and external hardness(<5HRC)
  • Low broken rate, long working life
  • High density, strong impact toughness
  • High performance price ratio, cost saving is obvious

Grinding ball hot rolling production line parts

  • Material Storage and automatic Feeder: Programmable Logic Control automatic feeder system with 6m length
  • Induction heating furnace: The power is designed as per your production capacity
  • Rolling mill System: Rolling mill, Roller universal joint, Distribution Box, Reducer, motor (220KW AC frequency), motor mount, rollers
  • Die for the grinding steel ball: As per your steel ball diameters
  • Conveyor and quenching system: Conveyor hoist, Spiral quenching tank, Frequency speed Control
  • Tempering furnace: Optional
  • General operating console(It’s optional)
  • Infrared Thermometer(It’s optional)
  • Closed cooling tower

Successful cases:

Steel ball diameter

Unit weightg

Production capacityPCS/Minute

Production capacityKG/H

Ø25mm

72

100

432

Ø35mm

197

80

945

Ø30mm

125

100

750

Ø40mm

296

80

1420

Ø50mm

578

58

2011

Ø50mm

578

50

1734

Ø60mm

999

50

2997

Ø70mm

1586

30

2854

Ø80mm

2367

20

2840

Ø80mm

2.367

60

8521

Ø100mm

4.14

10

2484

Ø125mm

7.18

10

4308
